In high-reliability applications like aerospace, medical devices, and power distribution, the failure of a single electrical contact causes catastrophic system downtime and severe safety hazards. Procurement and engineering teams face a continuous challenge. You must verify that a manufacturing partner’s joining methods yield consistent, defect-free components. These components must meet stringent mechanical and electrical specifications over their entire lifecycle. Destructive testing provides empirical evidence of joint integrity. This includes metallurgical cross-sectioning, tensile pull testing, and complementary mechanical evaluations. Relying solely on visual inspection leaves hidden internal defects completely undetected. This guide details how to evaluate these specific testing protocols. Implementing rigorous testing ensures the long-term reliability of your components before committing to full-scale production runs.
Mechanical Integrity Equals Electrical Reliability: A verified metallurgical bond prevents micro-voids that lead to increased electrical resistance, thermal runaway, and premature component failure.
Testing Exposes Hidden Defects: Cross-section analysis reveals internal weld structures (penetration, porosity, heat-affected zones, and wire compaction) that standard visual inspections and non-destructive tests cannot detect.
Methodology Matters: Accurate pull testing requires precise fixturing, strict tooling controls, calibrated equipment, and statistically significant sample sizes to establish true baseline tensile strengths.
Vendor Evaluation Requires Data: Selecting a manufacturer for electrical contact assemblies requires reviewing their documented testing procedures, OEM buyer specifications, acceptance criteria, and compliance with industry standards (e.g., ASTM, ISO).
Establishing baseline requirements for contact assemblies requires analyzing the operational environment. Components operating in high-stress environments face continuous vibration, rapid thermal cycling, and high current loads. These stressors actively degrade weak physical connections. You must define success criteria based on both immediate mechanical strength and long-term electrical stability.
Mechanical joint strength directly influences contact resistance. A weak joint allows micro-movement between conductive surfaces. This movement introduces oxygen, leading to oxidation and increased voltage drop. Higher resistance generates localized heating. Thermal runaway eventually destroys the connection. A mechanically robust joint maintains a gas-tight seal, preserving long-term conductivity.
Environmental factors accelerate the degradation of sub-optimal joints. Thermal expansion and contraction fatigue mechanical fasteners over time. High-vibration environments induce fretting wear. Rigorous upfront validation ensures the chosen joining method withstands these specific lifecycle stressors. Testing protocols must simulate or exceed these field conditions to guarantee reliability.
Selecting the correct attachment method dictates the testing protocols required. Each method presents distinct structural characteristics and performance trade-offs. You must match the joining technique to the specific application requirements.

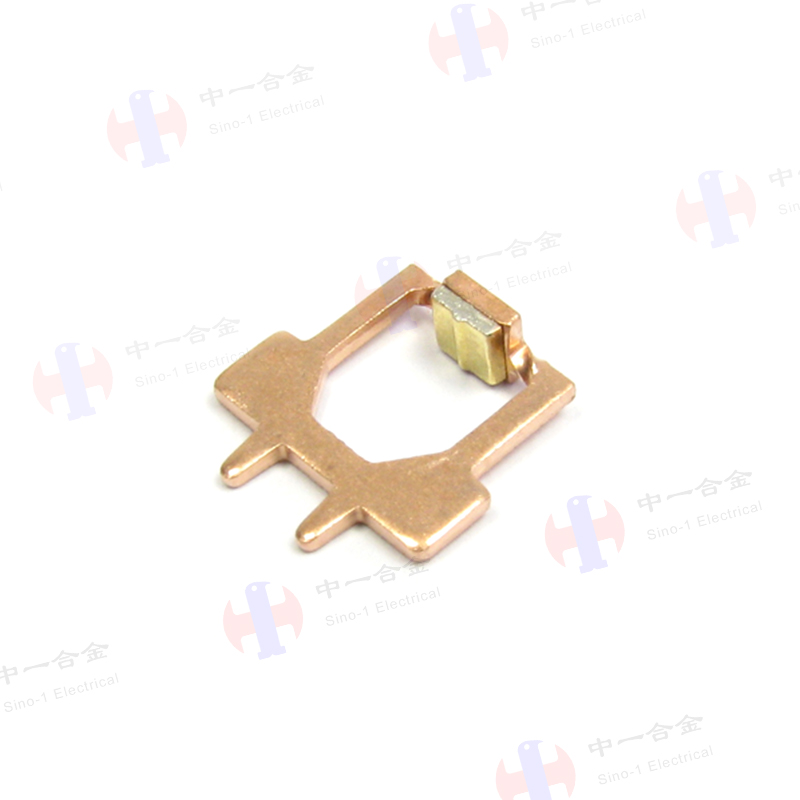

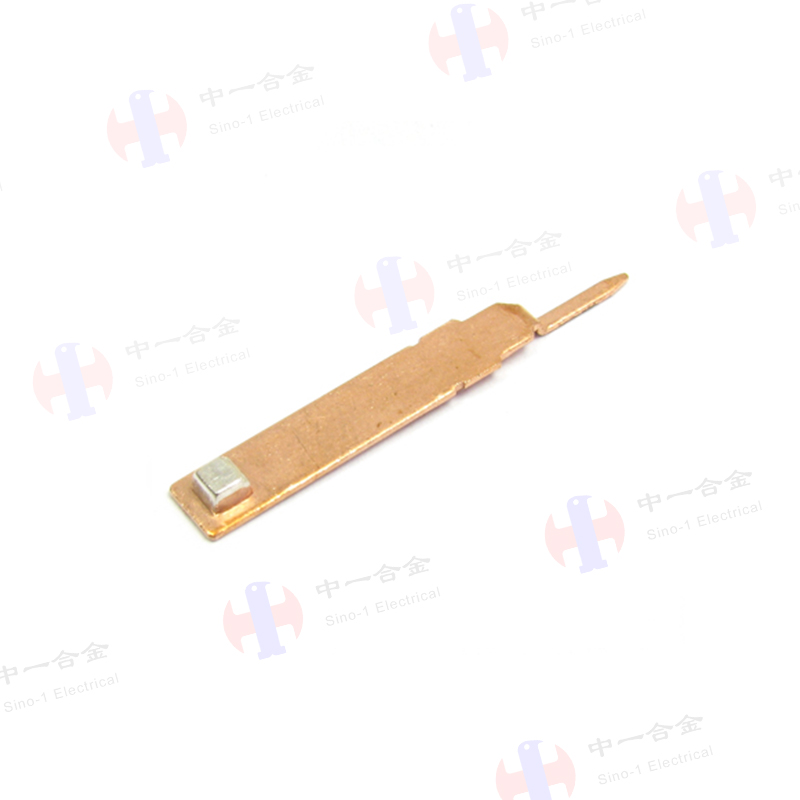

Welding fuses materials to create a continuous metallurgical bond. This process melts the base metals, often combining them without filler material. welded contact assemblies deliver the lowest electrical resistance available. The continuous metal path eliminates interface resistance. They offer the highest mechanical strength, making them ideal for high-current applications. The lack of mechanical fasteners reduces overall assembly weight and footprint.
Riveting relies on mechanical fastening using a deformed rivet. The process compresses the contact material against the terminal. A riveted contact assembly works well for high-volume production. It requires less energy than welding and avoids heat-affected zones. However, riveted joints remain susceptible to micro-movement. Severe vibration or thermal expansion can loosen the rivet. This loosening leads to oxidation and increased electrical resistance over time.
Tapping utilizes threaded mechanical connections. Screws or bolts secure the contact to the base material. A tapped contact assembly allows for easy disassembly and field maintenance. This flexibility benefits complex switchgear or modular systems. The drawback involves strict torque control requirements. Thread-locking mechanisms prevent vibration-induced failure. Tapped joints generally exhibit higher contact resistance than welded joints due to the physical interface gap.
Specify welding over mechanical fastening based on application criticality, lifecycle expectations, and performance requirements. Use the following matrix to guide selection.
Attachment Method | Electrical Resistance | Mechanical Strength | Vibration Tolerance | Ideal Application |
|---|---|---|---|---|
Welded | Very Low | Very High | Excellent | High-current, aerospace, sealed relays |
Riveted | Moderate | Moderate to High | Fair to Good | High-volume consumer electronics, standard switches |
Tapped | Moderate to High | High (with threadlock) | Moderate | Modular panels, serviceable switchgear |
Metallurgical evaluation moves beyond surface-level inspection. Visual checks cannot verify the internal geometry or integrity of a weld nugget. Cross-section analysis destroys a sample to reveal its internal microstructure. This process confirms that the welding parameters produce a consistent, reliable bond.
Accurate analysis requires meticulous sample preparation. Poor preparation obscures defects or introduces artificial flaws. The process follows strict metallurgical protocols. We use a specific sequence to ensure the sample remains pristine.
Sectioning: Technicians cut the assembly using precision abrasive saws. Liquid coolant prevents heat generation that could alter the metallurgical structure.
Potting: The sectioned sample is mounted in epoxy or fast-curing acrylic resin. This potting process ensures edge retention during grinding and polishing.
Grinding: Successive grits of silicon carbide paper grind the surface flat. We typically start at 240 grit and move up to 1200 grit.
Polishing: Diamond suspension liquids polish the sample to a mirror finish. This removes all microscopic scratches from the grinding phase.
Chemical Etching: Specific acid blends are applied to the polished surface. Etching reveals the grain boundaries, weld nugget, and heat-affected zones under a microscope.
Engineers examine the etched sample under high magnification. They measure specific dimensions against established acceptance criteria.
Weld Penetration and Fusion: Technicians measure the depth and area of the bond interface. Insufficient penetration indicates a weak joint. Excessive penetration can burn through thin terminal materials.
Conductor Wire Compaction: For assemblies integrating wire harnesses, analysts evaluate strand fusion. They check how well individual wire strands are compacted within the welded terminal. The process must fuse the strands without excessive deformation or leaving loose, unbonded wires.
Porosity and Voids: Analysts look for trapped gases or shrinkage cavities. Excessive porosity compromises both mechanical strength and electrical conductivity. Specifications dictate the maximum allowable void size and total void percentage.
Heat-Affected Zone (HAZ): The heat of welding alters the adjacent base material. Analysts assess the extent of these material property changes. They look for signs of embrittlement or unwanted annealing that could weaken the terminal.
Cracking: Micro-fissures indicate improper cooling rates or incompatible alloys. Any cracking within the weld nugget or HAZ typically results in immediate lot rejection.
Defect Type | Visual Indicator | Common Root Cause |
|---|---|---|
Excessive Porosity | Large dark voids within the weld nugget. | Contaminated surfaces, trapped shielding gas, or incorrect cooling rates. |
Incomplete Fusion | Distinct line separating base metals. | Insufficient heat input, low current, or improper electrode pressure. |
Micro-cracking | Hairline fractures in the HAZ. | Incompatible alloys, excessive heat input, or rapid quenching. |
Burn-through | Weld penetrates completely through the terminal. | Excessive current or prolonged weld time for the material thickness. |
Tensile testing applies controlled, increasing force to the assembly until failure occurs. This destructive test determines the ultimate tensile strength of the joint. It provides quantifiable data regarding the mechanical integrity of electrical contact assemblies.
Accurate pull testing relies entirely on equipment quality and setup precision. Manual pull testers introduce human error through inconsistent pull rates. Motorized test stands ensure a constant, repeatable pull rate.
Selecting the correct load cell capacity is critical. Using a 5000N load cell to test a joint that fails at 50N results in poor resolution and inaccurate data. Engineers must match the load cell to the expected failure range of the specific assembly.
Tooling controls and custom fixturing prevent artificial test failures. The assembly must be held securely. Specific grip tooling isolates the weld joint. Improper grips induce artificial stress concentrations, shear forces, or crush the terminal. Custom fixtures ensure the force applies directly along the intended axis.
Maintaining strict calibration schedules for load cells guarantees measurement accuracy. Equipment drift invalidates test data. Regular calibration against certified standards ensures compliance with industry testing norms.
Test execution follows defined parameters based on material specifications. Engineers establish the correct pull rate to ensure consistent strain application. Standard rates often range from 1 to 2 inches per minute, depending on the standard applied.
Heavy-duty assemblies require extreme load verification. Technicians subject these components to extreme weight thresholds. For example, testing may pull at 500+ lbs to validate performance under catastrophic stress conditions. The software records peak force and elongation data, generating a force-displacement curve.
The peak force value only tells part of the story. Analyzing how the joint fails provides critical feedback for process improvement.
Failure Mode | Description | Root Cause / Implication |
|---|---|---|
Base Material Failure | The parent material breaks before the weld yields. | Ideal outcome. Proves the weld is stronger than the surrounding components. |
Interfacial/Weld Failure | The joint separates exactly at the weld interface. | Indicates insufficient fusion, surface contamination prior to welding, or improper weld parameters. |
Nugget Pull-Out | The weld nugget tears out a chunk of the opposing base material. | Acceptable in certain conditions. Provides data on the tear strength of the surrounding material. |
Tensile testing measures straight-line pull strength. However, components often face bending forces during installation or operational vibration. Bend testing determines the soundness and ductility of a welded joint. It complements the tensile data gathered from pull testing.
Technicians utilize wrap-around or plunger-style testing fixtures. They bend the assembly to a specified radius or angle, typically 90 or 180 degrees. Mandrel diameter selection follows strict formulas based on material thickness (t). Common bend radii include 2t or 3t. Using a mandrel that is too small induces artificial failure, while a mandrel that is too large fails to adequately stress the joint.
Bend testing exposes flaws that straight-line pull testing might miss. It identifies embrittlement or micro-cracking in the Heat-Affected Zone (HAZ). If the HAZ has become too brittle during welding, the tension side of the bend will crack. Passing this test ensures the assembly can withstand installation routing and continuous operational vibration without fracturing.
Raw test data holds no value without proper interpretation. Engineers must correlate destructive test results to application requirements. They translate cross-section measurements, wire compaction data, and pull force metrics into predicted lifecycle performance.
Procurement teams must explicitly define testing requirements in vendor contracts. These specifications should detail sample sizes, required tooling controls, and strict acceptance criteria. Clear documentation ensures consistent quality across all production runs.
Engineers set minimum pull force thresholds based on safety factors and historical performance data. They establish maximum allowable porosity percentages for cross-sections. Any sample falling below these thresholds triggers a root cause analysis and potential lot quarantine.
Testing protocols must align with recognized industry standards. Organizations like AWS, ASTM, and MIL-SPEC provide rigorous testing frameworks. Compliance ensures regulatory approval and full traceability.
Determining the appropriate frequency of destructive testing dictates production scalability. High-volume production requires strategic sampling. Manufacturers typically perform destructive testing during setup verification, at shift changes, and through random sampling intervals. This frequency maintains strict quality control without causing excessive material waste.
Implementing a destructive testing program involves inherent risks. Poor execution leads to false confidence or unnecessary scrap. Manufacturers must deploy specific mitigation strategies.
Testing too few samples fails to capture normal process variation. It allows defective batches to pass inspection.
Mitigation: Utilize statistical process control (SPC). Determine sample sizes that accurately represent the production lot. Follow OEM buyer guidelines and established statistical models to calculate required sampling rates.
Generic grips cause slippage or premature wire breakage. This yields artificially low pull strength readings, leading to false failures.
Mitigation: Design and validate custom grips for every unique assembly. Enforce strict tooling controls that isolate the weld joint. Ensure the fixture prevents any shear forces from acting on the terminal during the tensile pull.
Evaluating microstructures requires expertise. Untrained personnel may miss critical micro-cracks or misjudge porosity levels.
Mitigation: Utilize trained metallurgists for complex evaluations. Implement automated imaging software. This software provides objective, repeatable analysis of weld structures, penetration depth, and strand compaction ratios.
Load cells and optical measurement tools lose accuracy over time. Uncalibrated equipment produces invalid certification data.
Mitigation: Implement strict, documented calibration schedules. Calibrate all load cells, motorized test stands, and measurement optics against certified master gauges annually or bi-annually.
Take the following next steps before finalizing a manufacturing contract for Integrated Electrical Contact Assemblies:
Request comprehensive sample test reports from prospective vendors, including cross-section micrographs.
Review their bend test results and raw pull test data logs to verify equipment capability.
Audit their calibration records and statistical process control (SPC) methodologies.
Require a fully documented pilot run to validate their testing rigor against your specific OEM acceptance criteria.
A: A pull test applies tensile force perpendicular to the weld interface, pulling the components apart to measure ultimate tensile strength. A shear test applies force parallel to the weld interface, pushing one component across the other. Both tests evaluate joint strength but simulate different operational stress directions.
A: Pull testing measures straight-line tensile strength but may not reveal brittleness. Bend testing forces the joint and the heat-affected zone (HAZ) to flex. This exposes embrittlement, micro-cracking, and poor ductility that could cause failure during installation or operational vibration.
A: Destructive testing frequency depends on statistical process control (SPC) requirements. Typically, testing occurs during initial machine setup, at every shift change, after tooling adjustments, and at random intervals defined by the OEM's Acceptable Quality Limit (AQL) standards.
A: Riveting is preferred for high-volume, cost-sensitive applications where extreme mechanical strength or absolute minimum electrical resistance is not critical. It requires less energy, avoids heat-affected zones, and can join dissimilar metals that are difficult to weld.
A: A passing cross-section shows adequate weld penetration, minimal to zero porosity, no micro-cracking in the nugget or HAZ, and proper fusion at the interface without excessive deformation of the base materials.
A: Wire compaction is evaluated via cross-sectioning. Analysts measure the ratio of solid copper to void space within the welded terminal area. A passing result shows individual strands fused together tightly without loose wires or excessive gaps.
