Our Inlay Clad Metal Strip is an advanced engineered composite material designed for high-performance electrical conductive components, exclusively built for industrial manufacturers and electrical component fabricators. This innovative clad strip seamlessly integrates the exceptional electrical conductivity of precious metals with the superior mechanical strength of high-grade copper alloys and structural base materials, eliminating the limitations of single-metal materials and outdated fabrication methods like electroplating and manual riveting.
| Quantity: | |
|---|---|
Our precious metal inlay clad strip supports full customization of surface and base material combinations, with strict dimensional control to meet rigorous industrial standards. With a stable monthly production capacity of 50 tons, we deliver consistent bulk supply for large-scale production lines, ensuring zero disruption to your manufacturing schedule.
Parameter | Specification |
Surface Layer Material | Gold, gold alloy, pure silver, silver-nickel, silver-copper, silver cadmium oxide, silver tin oxide, other custom precious metal alloys |
Base Core Material | Pure silver, silver alloy, copper, brass, phosphor bronze, beryllium copper, nickel silver, nickel, iron, stainless steel, Monel, custom structural alloys |
Surface Layer Thickness | 0.02 mm – 1.0 mm, fully customizable |
Base Material Thickness | 0.05 mm – 3.5 mm, with tight tolerance control |
Monthly Production Capacity | 50 tons, supporting bulk and custom batch orders |
Customization Support | Full material, dimension, and performance tailoring |
Unlike electroplated materials that face delamination and adhesion failure, our high bonding strength clad metal strip delivers metallurgical bonding between layers, with zero risk of peeling even under extreme vibration, thermal cycling, and long-term operation, ensuring consistent performance and extended service life.
Our delamination-free inlay clad strip concentrates high-value precious metals only in critical conductive contact areas, reducing precious metal consumption by up to 80% compared to solid precious metal components while retaining full electrical performance, delivering massive cost savings for bulk production.
The composite structure of our electrical contact clad metal strip delivers exceptional electrical and thermal conductivity, corrosion resistance, wear resistance, and vibration damping in one material. It also features ultra-low temperature rise during operation, outperforming single-metal alternatives in high-load electrical applications.

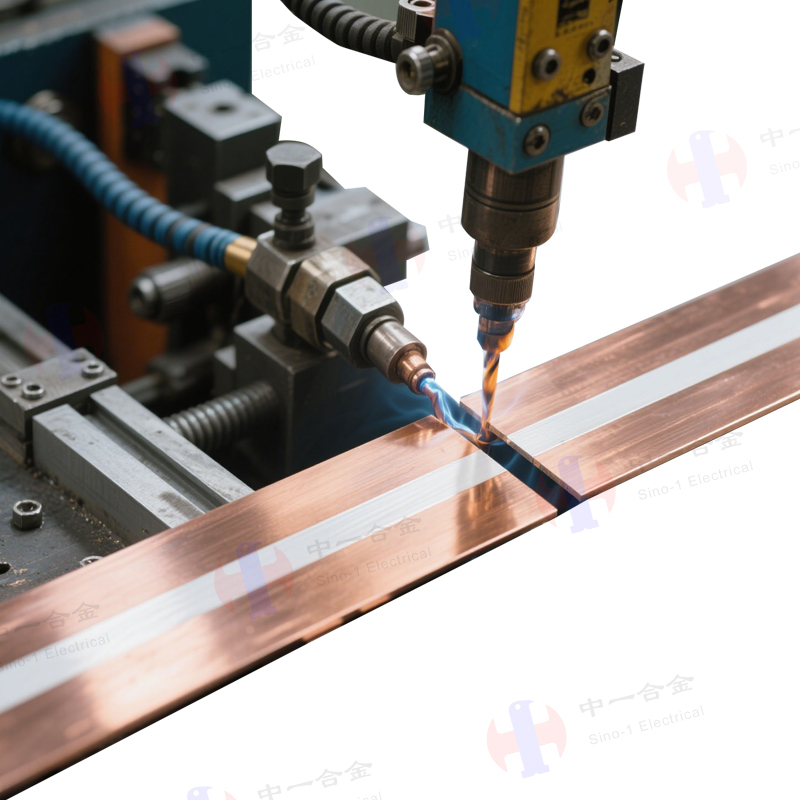

Our clad strip eliminates the need for traditional riveting or welding steps, simplifying your fabrication workflow and reducing processing costs. It also supports fully integrated structural design, enabling more compact and high-performance component layouts.
Our custom inlay clad metal strip is purpose-built for industrial fabricators across key sectors, with core use cases including:
Low-voltage electrical components: wall switches, micro-switches, circuit protectors, and residual current devices
Temperature regulation systems: thermostats, thermal overload protectors, and temperature control modules
Micro-motor manufacturing: motor brushes, commutators, and conductive components for precision micro-motors
Automotive electronics: vehicle control switches, sensor components, and on-board electrical system parts
We offer fully customizable surface and base materials. Surface layers include gold, silver, and silver-based alloys, while base materials cover copper alloys, stainless steel, Monel, and other structural metals, all tailored to your performance requirements.
Our surface layer thickness ranges from 0.02 mm to 1.0 mm, and base material thickness ranges from 0.05 mm to 3.5 mm, with custom tolerances available for precision applications.
Our inlay clad strip achieves metallurgical bonding between layers, with far higher adhesion strength, zero delamination risk, and more consistent conductive performance than electroplated alternatives, plus precise control of precious metal layer thickness for targeted cost savings.
We maintain a stable 50-ton monthly production capacity, supporting both large-scale bulk orders and small-batch custom prototypes.
For industrial manufacturers and component fabricators seeking high-performance, cost-effective Inlay Clad Metal Strip solutions, our technical team is ready to deliver a fully customized material package tailored to your specific application requirements. Whether you need prototype development or bulk ongoing supply, we provide consistent quality, stable lead times, and dedicated technical support. Contact us today to discuss your project needs and receive a custom quote.
