In high-reliability power distribution and electromechanical systems, the mechanical integrity of a connection directly dictates its electrical performance. A failing thread means a failing product. Inconsistent thread depth in tapped components leads to insufficient fastener engagement, resulting in increased electrical resistance, thermal runaway, or catastrophic mechanical shear under vibration. When a fastener cannot seat properly, the entire assembly becomes a liability on the production floor and in the field.

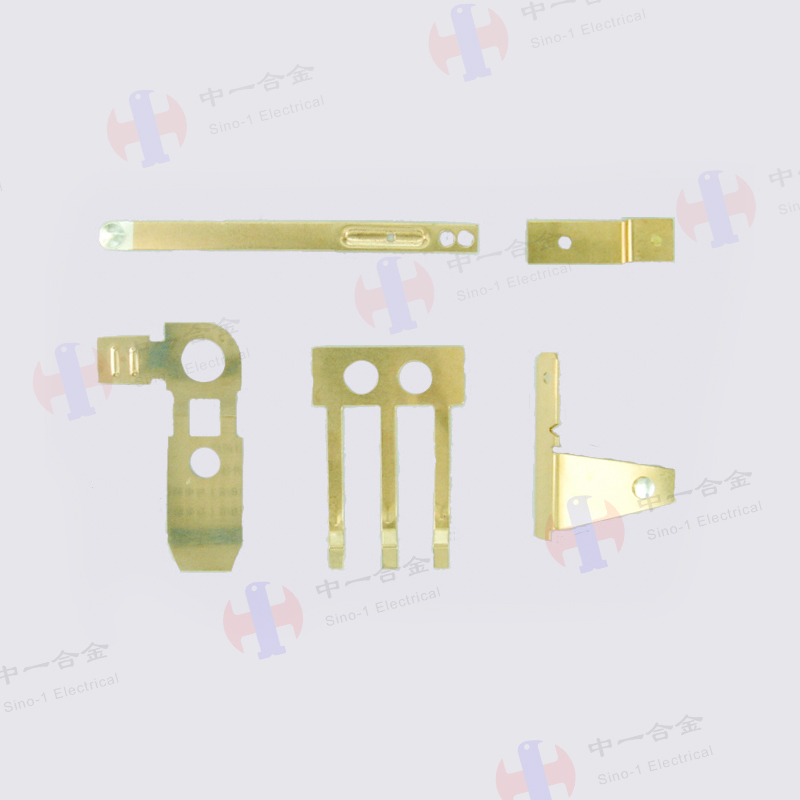

For engineers and procurement teams evaluating manufacturing partners, understanding how a supplier controls, measures, and guarantees thread depth is a critical step in sourcing reliable Integrated Electrical Contact Assemblies. This guide breaks down the engineering standards, manufacturing controls, and quality assurance protocols necessary to ensure flawless tapped connections without relying on guesswork.
Engineering Baselines: Optimal thread depth typically ranges from 1.5x to 2x the major diameter of the thread; however, extreme duty or ultra-soft materials may require up to 3x diameter (3xd) depth to guarantee joint integrity.
Strict Quality Assurance: Reliable suppliers do not rely on visual inspection; they resolve floor-level metrology disputes by using modified Go/No-Go thread plug gages with depth notches or automated CMM verification rather than error-prone manual turn-counting.
Material-Specific Tooling: Achieving consistency in soft, highly conductive metals (like pure copper or aluminum) requires different tapping strategies, such as roll/form tapping to avoid chip buildup and work-harden the threads.
Strategic Assembly Selection: While tapped contact assemblies offer superior field serviceability, high-vibration or permanent applications may require evaluating a welded contact assembly or riveted contact assembly based on total lifecycle costs.
Electrical contacts demand high clamping force to maintain low contact resistance over the product's lifespan. Thread engagement dictates the shear area and tensile strength of the connection. Proper engagement prevents micro-fretting and thermal expansion failures. If the thread depth is too shallow, the fastener cannot apply sufficient torque, leading to loose connections and eventual arcing. We see this constantly when suppliers rush the machining process and fail to clear chips from blind holes.
Engineers specify tapped assemblies for modularity, maintenance, and multi-component integration compared to permanent joining methods. Tapped connections allow field technicians to replace worn contacts or adjust tension without destroying the entire unit. This flexibility makes them indispensable in complex switchgear and relay systems where downtime is unacceptable. You need a connection that holds tight under thermal cycling but yields when a wrench is applied during scheduled maintenance.
When evaluating electrical contact assemblies, the mechanical fastening method is just as important as the conductive material itself. A silver-cadmium oxide contact pad is useless if the copper busbar it attaches to has stripped threads. The clamping force generated by the fastener must overcome the natural repulsion forces generated during high-current fault conditions. This requires a thread profile that is fully formed, concentric, and cut to the exact specified depth.
We often encounter situations where design engineers specify a standard thread depth without considering the base material's yield strength. This leads to manufacturing bottlenecks. A deep thread in a hard brass alloy causes excessive tap wear and frequent tool breakage, while a shallow thread in pure copper strips out during final assembly torque-down. Balancing these mechanical and electrical demands requires a deep understanding of both metallurgy and machining dynamics.
The physics behind thread engagement limits dictate specific depth requirements. Engagement beyond 1.5x for hard metals or 2x for standard soft metals like aluminum transfers the failure point from the internal threads to the fastener itself. Deeper tapping becomes an unnecessary manufacturing expense. However, 3x diameter (3xd) thread depth is necessary for highly ductile pure copper or critical high-stress assemblies. This extended depth ensures the internal threads do not strip under high torque.
The shear area quickly dwarfs the tensile area as engagement approaches 1x diameter. This dynamic is critical for high-torque electrical fastening. Substandard depth risks catastrophic stripping because the internal threads cannot handle the applied load. Maximizing the shear area through proper thread depth ensures the connection remains stable under mechanical stress. When you torque a bolt, you are essentially trying to pull the internal threads out of the base material. The more threads engaged, the larger the shear cylinder, and the higher the pull-out force required to cause failure.
Base materials used in electrical contacts dictate the required thread depth to prevent stripping. Pure copper, brass, aluminum, and silver-cadmium oxide behave differently during machining. Copper requires deeper engagement due to its extreme ductility, while harder alloys can achieve sufficient strength at shallower depths. Let's look at how different materials impact thread depth specifications.
Material Type | Recommended Thread Depth | Machining Characteristics | Primary Application |
|---|---|---|---|
Pure Copper (C11000) | 2.5x to 3.0x Diameter | Highly ductile, prone to galling, requires form tapping. | High-current busbars, primary power distribution. |
Brass (C36000) | 1.0x to 1.5x Diameter | Free-machining, chips break easily, excellent thread finish. | Terminal blocks, grounding bars, low-stress connectors. |
Aluminum (6061-T6) | 1.5x to 2.0x Diameter | Soft but abrasive, requires high coolant flow to prevent chip packing. | Lightweight power transmission, aerospace contacts. |
Silver Alloy Composites | 1.5x to 2.0x Diameter | Abrasive, rapid tool wear, requires rigid tapping cycles. | Relay contacts, high-cycle switchgear. |
When designing for these materials, you must account for the manufacturing reality on the shop floor. Specifying a 3xd thread in a blind hole in pure copper is a nightmare for the machinist if chip evacuation is not planned for. The tap will pack with chips, bottom out, and snap off inside the expensive contact assembly. This is why material-specific depth considerations must be paired with appropriate manufacturing controls.
Modern CNC centers require synchronized feed and speed rates to prevent thread distortion and ensure exact depth repeatability. Rigid tapping cycles lock the spindle rotation to the Z-axis feed, ensuring the tap enters and exits the hole at the exact same pitch. This synchronization eliminates the risk of cross-threading or shallow cuts. Older machines relying on floating tap holders often produce inconsistent depths because the tension/compression spring mechanism introduces variability.
The choice between cut taps and form taps depends on the material's ductility and the requirement for chip-less manufacturing. Form taps displace metal rather than cutting it, making them ideal for soft conductive metals. Predictive maintenance and tool-life monitoring prevent shallow threads caused by tap wear. A worn tap will produce undersized threads or fail to reach the programmed depth. We track tool life by the number of holes tapped and swap tools before they degrade thread quality.
Chip packing in blind tapped holes causes premature tap bottoming, tool breakage, and inconsistent functional depth. Solutions include spiral flute taps, high-pressure coolant, and peck tapping cycles. These methods ensure chips are pulled out of the hole, allowing the tap to reach the full required depth safely. If you are machining a blind hole, you must drill the minor diameter deeper than the required full thread depth to provide chip clearance. This is known as the drill point runout allowance.
Verify the minor diameter hole size using precision pin gages before tapping begins.
Ensure high-pressure coolant is directed straight into the hole to flush chips during the cutting cycle.
Implement peck tapping for holes deeper than 1.5x diameter to break chips and clear the flutes.
Monitor spindle load on the CNC machine; a sudden spike indicates chip packing or a dull tap.
Use form taps whenever the material ductility allows, completely eliminating the chip evacuation problem.
By controlling these variables at the machine level, suppliers can guarantee that every tapped hole meets the print specifications. This proactive approach prevents defects from reaching the assembly line, where a stripped thread can ruin a nearly finished, high-value component.
Verifying thread depth is a common floor-level metrology issue. The manual turn-counting method introduces significant operator error and inconsistency. Counting turns relies on subjective feel and does not account for incomplete threads at the bottom of a blind hole. Standardized, physical depth-gauging solutions eliminate this ambiguity. You cannot rely on an operator threading a bolt in by hand and guessing if it went deep enough.
The industry-standard method involves modifying a Go plug gage with a precision depth notch or step. This modification represents and verifies that the functional thread depth is met without relying on human counting. The operator simply threads the gage into the hole; if the notch aligns with the surface, the depth is correct. If the notch sits above the surface, the hole is too shallow. This provides a binary pass/fail result that is easily documented.
Coordinate Measuring Machines (CMM) and Automated Optical Inspection (AOI) play vital roles in batch-testing assemblies for thread concentricity, pitch, and depth. Additionally, periodic pull-out testing and torque-to-failure tests validate that the theoretical thread depth delivers the required mechanical strength in real-world conditions. We regularly sacrifice sample parts to verify that the threads hold past the specified torque limits.
When auditing a supplier, walk the floor and look at their inspection stations. If you see operators counting turns with a standard bolt, you have a problem. You want to see calibrated, notched thread gages and documented SPC (Statistical Process Control) charts tracking thread depth across production runs. This level of rigor separates reliable manufacturers from those who just push parts out the door.

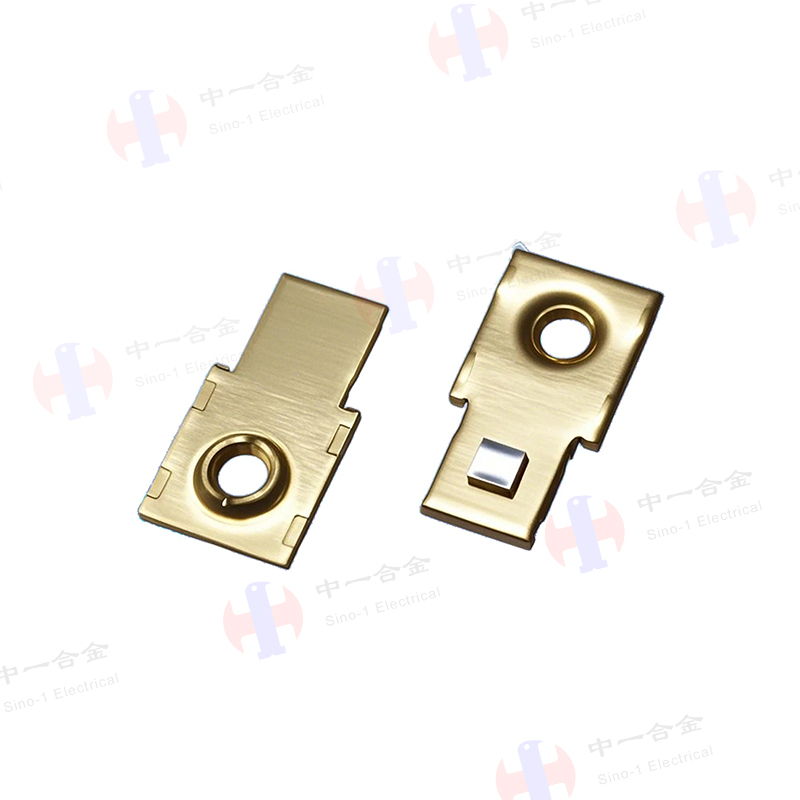

Tapped contact assemblies are best for applications requiring field replacement, adjustable tension, or the integration of complex, multi-material busbar systems. They provide the necessary mechanical grip while allowing for future modifications or repairs without replacing the entire assembly. When a contact pad wears out after thousands of cycles, a tapped connection allows a technician to swap it out in minutes.
Evaluate scenarios where permanent, zero-resistance metallurgical bonds are required. A welded contact assembly is ideal when mechanical fasteners present an unacceptable loosening risk under extreme thermal cycling. Welding eliminates the interface resistance found in bolted joints, making it superior for continuous high-current applications where heat generation must be minimized.
Conversely, high-volume, cost-sensitive applications may benefit from a riveted contact assembly. Automated cold-heading or orbital riveting provides sufficient mechanical stability without the cycle time of CNC tapping. Riveting is fast, repeatable, and requires no secondary fastening hardware, making it the go-to choice for automotive relays and consumer appliance switches.
The choice between these methods depends entirely on the application's operational environment. High vibration? Go with welding or riveting. Need field serviceability? Tapping is your only option. Understanding these trade-offs ensures you specify the right assembly method for your specific product requirements.
Specify thread forming instead of cutting to work-harden the thread flanks. Utilizing threaded inserts like Helicoils for high-cycle connections also prevents stripping in soft metals like pure copper or aluminum. When a steel bolt is repeatedly threaded into a soft copper hole, the copper threads will eventually gall and shear. Inserts provide a hard steel interface that protects the softer base material.
Require suppliers to provide statistical process control data on hole depth prior to tapping. Mandate depth-notched gage inspections to ensure the tap has not bottomed out prematurely on packed chips. If the minor diameter hole is drilled too shallow, the tap will crash, resulting in a broken tool and a scrapped part. Verifying drill depth before tapping is a simple but highly effective mitigation strategy.
When evaluating a new supplier, ask them directly how they handle chip evacuation in blind holes. Their answer will tell you everything you need to know about their machining expertise. If they mention spiral flute taps, high-pressure coolant, and rigid tapping cycles, they know what they are doing. If they give a vague answer about standard machining practices, look elsewhere.
Consistent thread depth is a primary driver of mechanical reliability and electrical efficiency in tapped contact assemblies. When selecting a manufacturing partner, prioritize suppliers who demonstrate transparent, gage-based QA processes and a deep understanding of material-specific machining behaviors.
Take the following steps to ensure optimal performance:
Request sample inspection reports demonstrating the use of notched thread gages.
Review the supplier's tooling maintenance protocols to ensure taps are replaced before wear affects depth.
Submit CAD models for a design-for-manufacturability review to optimize thread depth specifications based on the selected contact material.
Specify thread forming processes for soft, highly conductive metals to improve thread strength.
A: The optimal thread depth typically ranges from 1.5x to 2x the major diameter of the thread. This baseline ensures sufficient shear strength, though it depends heavily on the hardness of the specific contact material used.
A: A 3x depth is reserved for ultra-soft, highly ductile materials like pure copper or high-stress applications. This extended depth ensures optimal thread production and prevents stripping under high torque.
A: Manufacturers use a Go thread plug gage modified with a precision depth step or notch. This tool verifies the functional thread length directly and repeatably, eliminating operator error.
A: Proper thread depth prevents mechanical shear, maintains necessary clamping force, and ensures low electrical contact resistance. Insufficient depth leads to loose connections and thermal failure.
A: Beyond 1.5x to 2x engagement in standard materials, the tensile strength of the fastener becomes the limiting factor. Deeper threads are unnecessary and costly unless working with ultra-soft metals.
A: Welding provides a permanent, vibration-proof, zero-resistance bond ideal for extreme thermal cycling. Tapped assemblies offer modularity and serviceability, allowing for field replacements and tension adjustments.
A: Yes. Form taps displace rather than cut metal, eliminating chip evacuation issues. This process also work-hardens the threads, significantly improving strength in soft metals like copper.
