At the microscopic level, no two mating surfaces are perfectly flat. In electromechanical switching, surface topography is a critical yet often overlooked determinant of switch lifespan. When two conductive faces meet, current does not flow evenly across the entire nominal area. Instead, it bridges across microscopic peaks. If the macro-level flatness of these surfaces is poorly controlled, the actual conductive area shrinks drastically, forcing high currents through limited pathways.
This discrepancy between the apparent contact area and the true contact area leads to unpredictable contact resistance, localized overheating, and premature component failure in high-cycle environments. Engineers designing switches, relays, and breakers must account for these geometric variations to ensure long-term reliability. Specifying the correct surface flatness tolerances requires a careful balance. You must weigh electrical performance requirements against manufacturing costs, material selection, and mechanical contact force to achieve optimal switching mechanics.
True Contact Area Drives Performance: Surface flatness dictates the distribution and size of "A-spots" (asperity contact points), which directly govern electrical resistance and thermal dissipation in electrical contacts.
Flatness vs. Roughness: Distinguish between macro-level form deviation (flatness) and micro-level surface finish (roughness), as both independently impact switching reliability.
GD&T Specifications Matter: Distinguishing between Surface Flatness and Feature of Size (FOS) flatness prevents costly manufacturing over-tolerancing.
Advanced Metrology is Essential: Laser interferometry and optical flats reveal microscopic geometric form deviations (concave vs. convex) that traditional tactile probes miss.
Material-Specific Tolerances: Manufacturing methods for silver button contacts, electrical contact rivets, and powder metallurgy contacts yield different baseline flatness profiles, influencing cost-to-performance ratios.
System-Level Mitigation: High flatness tolerances can sometimes be offset by increasing mechanical contact force or utilizing softer, highly conductive alloys.
When two Electrical Contacts close, they appear to touch across their entire face. Physics dictates otherwise. Current only flows through microscopic asperities known as A-spots. These peaks crash into each other, deform, and create the actual conductive bridges between the two components. Macro-level flatness deviations, such as concavity or convexity, force these A-spots to cluster in specific zones. A convex surface might only touch at the very center, while a concave surface might only touch along the outer rim. This clustering drastically reduces the effective conductive cross-section, limiting the switch's ability to handle rated currents without generating excess heat.
To understand the scale of this issue, consider that the true contact area is often less than 1% of the apparent contact area under normal mechanical loads. When you design a switch for a 20-amp load based on the nominal diameter of the button, you are assuming a relatively even distribution of that current. If poor flatness concentrates all 20 amps into a single microscopic cluster of A-spots, the current density in that specific region skyrockets. This leads to immediate thermal issues that degrade the surrounding material. We frequently see field failures where the outer edges of a contact look pristine, but the center is completely melted away due to a severe convex form deviation.
Poor flatness directly increases constriction resistance. Because the electrical current is forced to bottleneck through a fraction of the intended area, the resistance at the interface spikes. This forced current crowding at limited contact points generates localized Joule heating. As the temperature rises at these specific bottlenecks, the material properties begin to shift. The localized heat can soften the metal, accelerate oxidation, and create a feedback loop where higher resistance generates more heat, further degrading the connection.
Managing constriction resistance requires a deep understanding of how your chosen alloy behaves under thermal stress. Silver alloys, while highly conductive, will tarnish and form silver sulfide films if exposed to certain environments. When constriction resistance drives the localized temperature above the decomposition threshold of these films, you might see a temporary drop in resistance, followed by rapid physical wear as the softened silver deforms. If the temperature continues to climb, you risk reaching the melting point of the alloy, which leads to catastrophic failure modes like tack welding. Controlling flatness is the primary mechanical defense against this thermal runaway.
Manufacturing processes introduce specific, non-random physical deformation patterns into the metal. Coining, stamping, and heading apply immense mechanical stress. The symmetry and dominance of these net stresses often result in predictable geometries, such as cylindrical warping or spherical crowning. Understanding these predictable deformation geometries is vital because they alter the seating behavior and alignment of mating components under load. A switch designed for a perfectly flat face will behave erratically if the installed component has a distinct spherical crown, as the mechanical load will distribute unevenly across the mating surface.
Consider the mechanics of a progressive stamping die. As the carrier strip moves through the stations, the metal is stretched, bent, and compressed. Even if the final coining station strikes the contact face perfectly flat, the residual stresses trapped in the carrier strip can cause the entire assembly to warp the moment it is released from the die. We categorize these deformation patterns to predict how the switch will behave:
Spherical Crowning: The center of the contact sits higher than the edges. This guarantees a centralized A-spot cluster but risks severe current crowding.
Concave Warping: The edges sit higher than the center. This can trap debris or arc byproducts in the center void, leading to erratic resistance over time.
Saddle Warping: The surface curves up in one axis and down in the perpendicular axis. This causes unpredictable edge-loading and severe mechanical wear during operation.
The failure chain for uneven flatness is highly predictable. It begins with high localized resistance due to poor A-spot distribution. This resistance causes an immediate temperature rise during operation. Elevated temperatures accelerate oxidation on the metal surface, forming insulating films. These films further increase the contact resistance, generating even more heat. This thermal runaway eventually degrades the material entirely, leading to catastrophic switch failure, melted housings, or severe voltage drops across the circuit.
In heavy-duty applications, thermal runaway can destroy a switch in a matter of hours. We monitor the millivolt drop across the closed contacts during endurance testing. A steady millivolt drop indicates stable A-spot distribution. If the millivolt drop begins to spike erratically, it is almost always a sign that poor flatness has concentrated the current, the local asperities are melting, and the contact interface is physically breaking down. Once the base metal or the brazing alloy begins to migrate into the contact zone due to extreme heat, the switch is unrecoverable.
Non-planar mating surfaces cause uneven break distances during the opening phase of the switch. If a surface is warped, one side of the contact will separate before the other. This uneven separation concentrates all the arcing energy into the final microscopic point of connection. Concentrating the arc increases the probability of severe material transfer, known as the pip and crater effect. Over successive cycles, this localized melting and pooling of metal significantly increases the risk of tack welding, where the contacts fuse shut and fail to open.
Arcing is an unavoidable reality in electromechanical switching, but its destructive power can be managed if the arc is distributed evenly across the contact face. When flatness is poor, the arc always strikes at the exact same high spot. This repeated localized energy transfer vaporizes the silver alloy, leaving behind a deep crater on one side and a jagged pip on the other. Eventually, these two deformed features interlock mechanically or weld together thermally. Ensuring a high degree of flatness forces the arc to wander across the surface, distributing the wear and extending the operational life of the device.
Poor flatness causes mechanical stress concentrations during the "make" phase of the switching cycle. Instead of the mechanical force distributing evenly across the face, edge-loading or point-loading occurs. This uneven impact accelerates physical abrasion and deformation over thousands of switching cycles. The concentrated mechanical hammering physically wears down the localized high spots, generating conductive dust and altering the switch gap, which ultimately reduces the operational cycle life of the device.
Mechanical bounce exacerbates this issue. When a warped contact strikes its mate, the uneven geometry can cause the assembly to deflect and rebound, creating multiple rapid make-and-break events before finally settling. Each of these micro-bounces draws a small arc, multiplying the electrical wear per cycle. By maintaining strict flatness tolerances, you ensure a solid, uniform impact that minimizes bounce and keeps the mechanical wear predictable and evenly distributed.

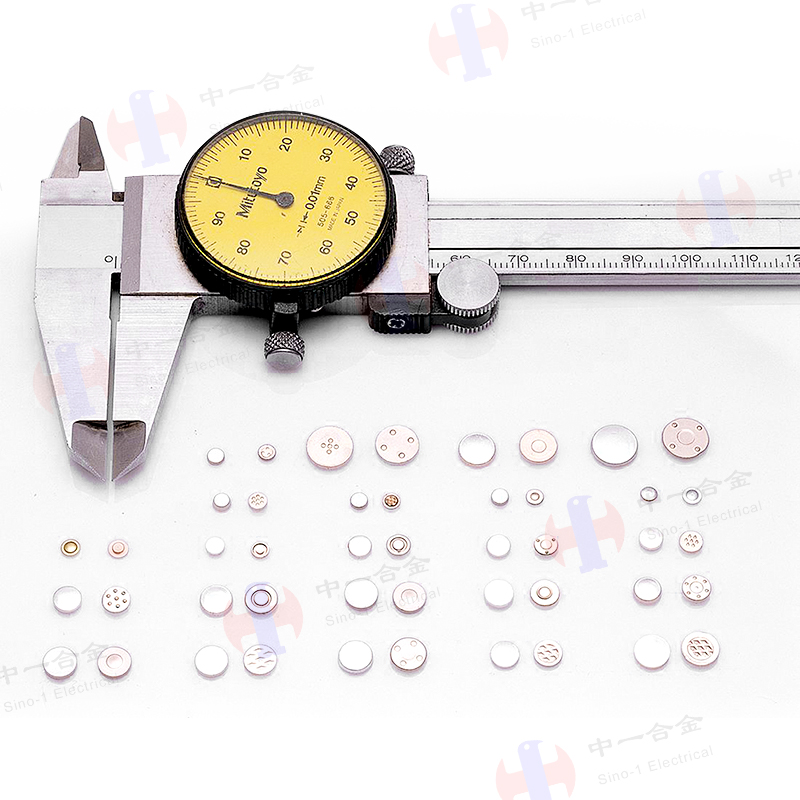

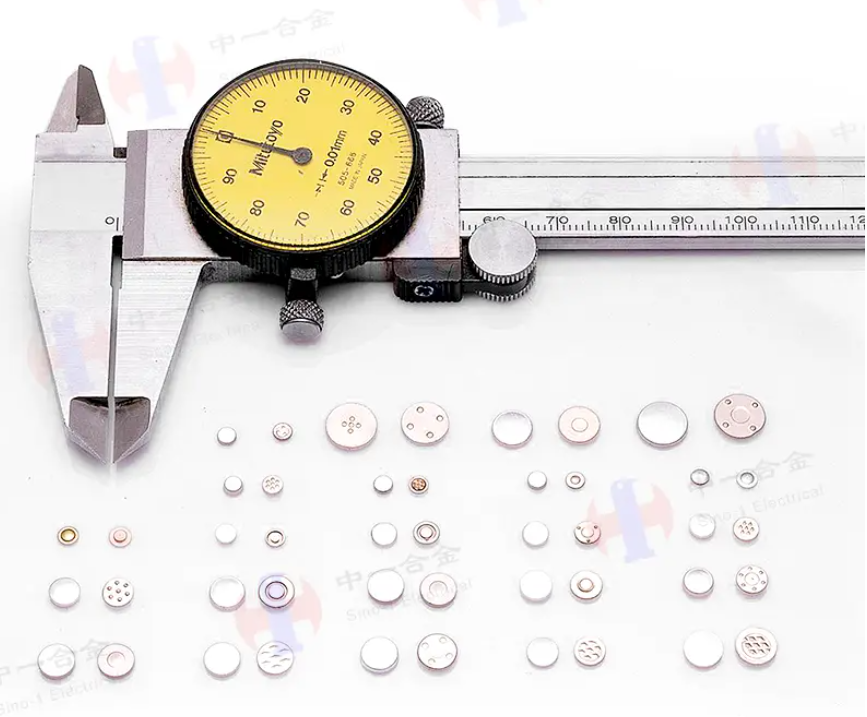

Producing silver button contacts involves cold heading and coining processes. These methods establish the baseline flatness of the solid or bimetal component. Coining strikes the metal with high pressure to flatten the face, but it requires a careful balance. Aggressive coining achieves better initial flatness but induces high residual mechanical stress into the part. Upon subsequent heating or assembly, this residual stress can release, causing the button to warp out of tolerance. Engineers must specify a coining process that achieves the necessary flatness without over-stressing the silver alloy.
When evaluating silver button production, you must look at the tooling design. The punch that forms the contact face must be perfectly parallel to the die cavity. Even a slight angular misalignment in the press will yield a wedge-shaped button. Furthermore, the ejection mechanism can distort the part as it pushes it out of the die. We often implement a secondary sizing operation for high-precision buttons, where the parts are fed through a precision rolling or pressing station to guarantee the final flatness specification before they are shipped to the assembly line.
An electrical contact rivet faces unique flatness challenges due to its installation method. The riveting or staking process applies heavy axial loads to the shank, which frequently causes doming effects on the contact head. A rivet that measures perfectly flat in a quality control lab may exhibit a convex crown once staked into a terminal blade. Therefore, evaluation criteria must clearly distinguish between pre-assembly and post-assembly flatness tolerances. Relying solely on pre-assembly measurements often leads to unexpected field failures.
To mitigate staking-induced deformation, we adjust the anvil design and the staking force. Using a spin-riveting process instead of a direct impact press can significantly reduce the axial load transferred to the contact head, preserving the original flatness. Additionally, designing the rivet with a slightly concave head can compensate for the expected doming effect; when the shank is staked, the head flattens out perfectly. This requires tight process control and extensive prototyping to dial in the exact pre-form geometry.
A powder metallurgy contact behaves differently regarding surface form compared to wrought alloys. Materials like Silver-Tungsten or Silver-Tin Oxide are pressed and sintered. The sintering process involves thermal shrinkage, which directly impacts final density and surface geometry. Because shrinkage is rarely perfectly uniform, these components frequently require secondary sizing or coining operations to achieve the required flatness. The hardness of refractory metals in the mix makes this secondary sizing more difficult and critical for ensuring proper seating in heavy-duty breakers.
The distribution of the refractory particles within the silver matrix also affects flatness. If a Silver-Tungsten contact has a higher concentration of tungsten on one side due to poor powder blending, that side will shrink less during sintering, resulting in a warped part. We rely on strict powder characterization and controlled atmosphere sintering to minimize these variations. For the most demanding applications, we bypass coining entirely and use precision double-disk grinding to machine the sintered contacts to a perfectly flat, parallel state.
Geometric Dimensioning and Tolerancing (GD&T) provides specific tools for controlling form. Surface Flatness defines a tolerance zone bounded by two parallel planes where all surface elements must lie, entirely independent of datums. It strictly controls the face itself. Conversely, Flatness of a Feature of Size (FOS) or Derived Median Plane (DMP) controls the median plane of a part with thickness. You must use Surface Flatness when you only care about the mating face of the contact. Using FOS flatness inadvertently tightens tolerances on the overall thickness of the carrier assembly, driving up manufacturing costs unnecessarily.
When drafting the engineering print, clarity is paramount. A callout of 0.05mm Surface Flatness on the contact face tells the machinist exactly what matters. If you mistakenly apply that 0.05mm tolerance to the entire thickness of a brazed assembly, the manufacturer will have to grind the back of the terminal blade as well, adding zero functional value to the switch but doubling the component cost. Always isolate the functional mating surface when applying form controls.
Macro-form deviation (flatness) and micro-texture (roughness, measured as Ra or Rz) are distinct metrics. An exceptionally smooth surface with a very low Ra value can still fail catastrophically if the overall form is warped, crowned, or out-of-flat. Roughness dictates the size of individual A-spots, while flatness dictates where those A-spots are allowed to form. Specifying a mirror finish does not guarantee good electrical performance if the component is shaped like a saddle. Both metrics require independent control on the engineering drawing.
We often see engineers over-specify surface roughness in an attempt to fix a flatness problem. Polishing a warped contact to a 0.1 Ra finish will not increase the true contact area; it just makes the localized high spot very shiny. In fact, a slightly rougher surface (e.g., 0.8 Ra) can sometimes be beneficial, as the microscopic peaks will plastically deform more easily under load, helping to break through thin oxide layers. Focus your budget on achieving macro-level flatness before worrying about micro-level polishing.
Engineers can offset looser flatness tolerances by manipulating other design variables. Increasing the actuator contact force helps plastically deform the asperities, forcing a warped surface to conform to its mate and increasing the true contact area. Alternatively, selecting softer contact materials allows for easier deformation under lighter loads. However, this approach has strict limits. Excessive force causes mechanical bounce, while overly soft materials suffer from rapid mechanical wear and premature fatigue.
Design Variable | Impact on Flatness Requirement | Potential Trade-offs |
|---|---|---|
High Mechanical Force | Allows for looser flatness tolerances | Increases wear, requires stronger springs, risks contact bounce |
Soft Contact Alloy (e.g., Fine Silver) | Conforms easily, tolerates poor flatness | Prone to mechanical wear and arc erosion |
Hard Contact Alloy (e.g., AgW) | Requires exceptionally tight flatness | Resists arc erosion but will not conform under normal loads |
Wiping Action Mechanism | Breaks oxides, compensates for minor warp | Increases physical abrasion and debris generation |
Specifying ultra-flat contacts alters the cost curve dramatically. Standard heading and coining are economical. However, once flatness requirements exceed the capability of cold forming, manufacturers must introduce secondary operations like lapping, grinding, or strict optical sorting. You must identify the threshold where the cost of these secondary operations outweighs the cost of redesigning the switch mechanism for higher compliance. Over-tolerancing flatness on a low-current signal switch wastes money, while under-tolerancing on a high-current breaker risks catastrophic failure.
To optimize costs, we recommend a tiered approach to tolerancing. Determine the maximum allowable constriction resistance for your specific application, and back-calculate the required true contact area. Use that data to establish a functional flatness limit. Do not specify a 0.01mm flatness tolerance if your thermal models show that a 0.05mm deviation keeps the operating temperature well within safe limits. Engineering is about finding the exact point where performance meets manufacturability.
Measuring microscopic form deviations requires advanced metrology. Placing a polished glass optical flat on a component under monochromatic light generates dark and light interference fringe bands. Interpreting these bands, measured in fractions of a wavelength, reveals precise surface figure deviations like concavity, convexity, or saddle-shaped warp without physical contact. For high-volume environments, high-throughput 3D optical interferometry tools provide rapid, non-contact surface form characterization, generating highly accurate topographical maps of the mating face.
Optical flats are excellent for quick, qualitative checks on the shop floor. If the fringe lines are straight and evenly spaced, the part is flat. If they curve like a topographical map of a hill, the part is crowned. However, for quantitative data and statistical process control, automated white-light interferometers are the industry standard. These machines can scan a tray of hundreds of contacts in minutes, providing exact micron-level measurements of form deviation and instantly flagging any parts that fall outside the GD&T tolerance zone.
Measuring flatness on millions of micro-components presents practical challenges. Tactile stylus probing is often inaccurate on soft silver alloys because the stylus can scratch or deform the surface during measurement. Optical scanning is faster and non-destructive but requires clean surfaces free of stamping oils. Production lines must establish acceptable Quality Acceptance Levels (AQL) and realistic sampling plans. Inspecting every single piece for sub-micron flatness is rarely viable; statistical process control must ensure the heading and coining dies remain within specification.
When setting up a metrology routine, you must account for the physical handling of the parts. Dropping a silver contact into a bulk bin can induce micro-dents that an optical scanner might misinterpret as a flatness failure. We implement specialized tray packaging for high-precision components to ensure that the flatness achieved at the coining press is maintained all the way to the final assembly station. The metrology data is only as good as your material handling practices.
A critical adoption risk is achieving perfect flatness at the component level, only to destroy it during assembly. Ultrasonic welding, brazing, or mechanical staking apply heat and pressure that warp the contact. If a perfectly flat button is brazed onto a terminal blade with uneven heat distribution, the bimetal effect will cause the face to crown. Quality control must measure the final assembly, not just the loose component, to verify that the true contact area remains optimal after all manufacturing steps are complete.
To prevent brazing distortion, we utilize induction heating with custom-profiled coils that heat the terminal blade and the contact uniformly. We also carefully select brazing pastes with melting temperatures that minimize the thermal shock to the silver alloy. After assembly, a final optical scan of the mating face confirms that the manufacturing process has not compromised the functional geometry of the switch. This closed-loop quality control is the only way to guarantee field reliability.
Audit your current engineering drawings to ensure Surface Flatness is specified independently from Surface Roughness and Feature of Size.
Implement post-assembly flatness checks to verify that staking, brazing, or welding processes are not warping the contact face.
Evaluate your switch actuator force to determine if you can safely utilize softer materials to offset minor flatness deviations.
Transition from tactile probing to non-contact optical interferometry for accurate, non-destructive measurement of soft silver alloys.
A: Flatness refers to the macro-level geometric form of the surface, determining if it is warped, convex, or concave. Roughness refers to the micro-level texture, such as tool marks or scratches. A surface can be perfectly smooth but severely warped.
A: Convex surfaces force all electrical current through a single, centralized point of contact. This drastic reduction in true contact area creates high constriction resistance, leading to localized overheating, rapid oxidation, and eventual thermal failure of the switch.
A: The heavy mechanical force required to stake or rivet a contact into a terminal blade often causes the head of the rivet to deform. This typically results in a doming or crowning effect, altering the flatness that was measured prior to assembly.
A: Yes, up to a point. Higher mechanical force can plastically deform the microscopic asperities, forcing uneven surfaces to conform. However, excessive force can cause mechanical bounce, accelerate wear, and lead to premature fatigue of the switch mechanism.
A: Tactile stylus probes drag a hard tip across the component. Because silver alloys are relatively soft, the stylus can scratch or physically deform the surface during measurement, yielding inaccurate flatness readings and damaging the component.
