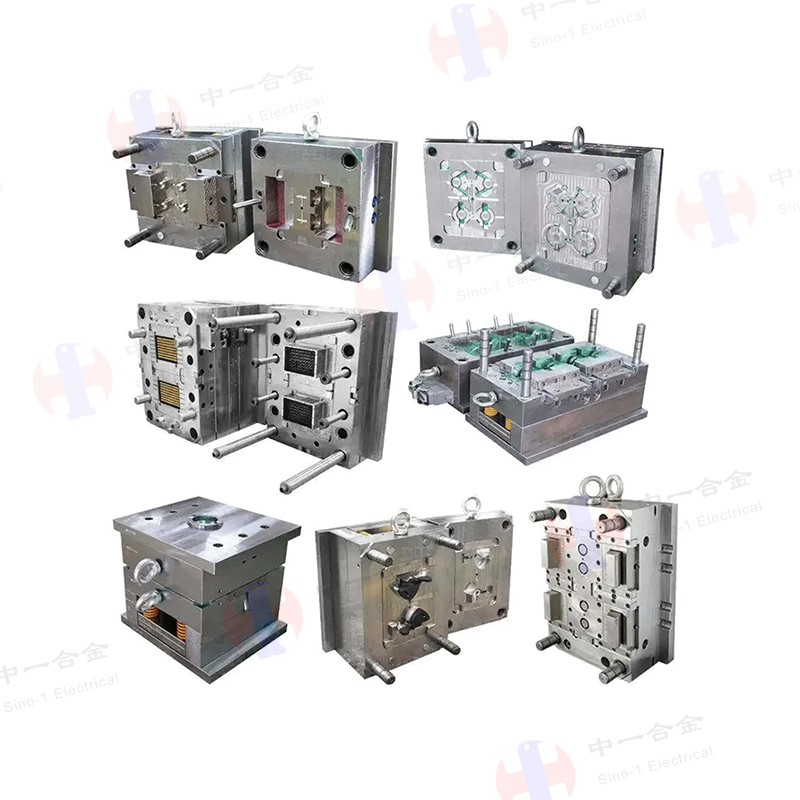

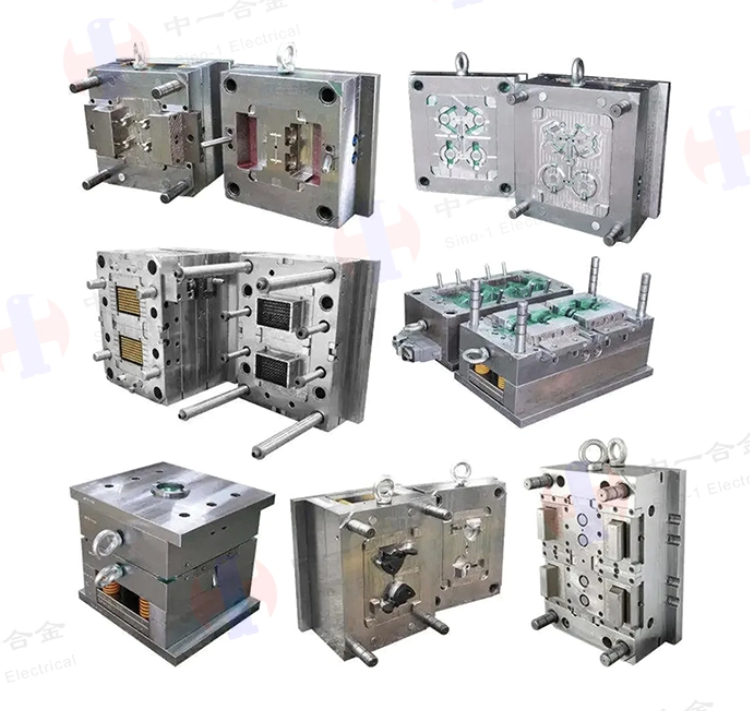

Plastics manufacturing faces a harsh physical reality. The cooling phase consumes 60% to 80% of the entire injection molding cycle. This makes heat extraction the primary bottleneck in high-volume production. Inefficient cooling layouts trap heat inside the tool. This trapped heat artificially extends cycle times and inflates per-unit production costs. Poor thermal management also introduces severe material inconsistencies. These inconsistencies cause warpage, sink marks, and dimensional failures that ruin entire production batches. Engineers must constantly balance speed and quality on the shop floor. Accelerating cycle times cannot compromise the structural integrity of the final product. Faster cooling must always equate to higher-quality outputs. Engineering the cooling channels remains a critical technical decision. Choosing between traditional drilled lines and advanced conformal layouts dictates the long-term profitability of your manufacturing operations.
Cycle Time Dominance: Optimizing cooling channel proximity and layout is the highest-leverage method for reducing overall cycle time and increasing hourly yield.
Thermal Uniformity Over Raw Speed: Faster cooling is only profitable if it is uniform; uneven mold temperature distribution leads to rejected parts, wasted material, and compromised mechanical properties.
Tooling ROI: Advanced layouts (like conformal cooling) require higher upfront capital for injection molding tooling but yield significant ROI through faster cycles and lower scrap rates in high-volume runs.
Complexity Dictates Strategy: Parts with varying wall thicknesses or those requiring secondary operations, such as insert molding parts, demand highly customized thermal management strategies to mitigate localized hot spots.
The primary objective of the cooling phase is straightforward but physically demanding. You must transition the polymer from a molten state to a rigid state. This rigid state must withstand aggressive ejection forces without deformation. Achieving this requires precise thermal management. Heat must move efficiently from the plastic into the tool steel. From there, the circulating coolant carries the thermal energy away from the machine. If any part of this chain fails, the part warps upon ejection or sticks to the cavity.
Several key factors influence this cooling duration. You cannot look at channel layout in isolation. You must evaluate the entire thermal system to understand where bottlenecks occur.
Part Wall Thickness: Thicker sections retain heat exponentially longer than thin walls. A wall thickness increase of just 10% can extend cooling time by 20% or more.
Melt Temperature: The temperature at which the polymer enters the mold dictates the total thermal load. Hotter melts require more aggressive heat extraction.
Mold Temperature: The baseline temperature of the steel affects the temperature gradient. A larger difference between the melt and the mold accelerates heat transfer.
Polymer Thermal Diffusivity: Every plastic transfers heat differently. Semi-crystalline materials release latent heat during crystallization, demanding higher cooling capacity than amorphous polymers.
Thermal dynamics at the cavity wall dictate final part quality. Heat transfers from the molten plastic into the mold steel via conduction. The steel then conducts this heat toward the cooling channels. Finally, convection transfers the heat from the steel into the flowing coolant. Any bottleneck in this three-step process extends the cycle. High-quality Injection Molds and Molded Parts rely on uninterrupted thermal flow. The boundary layer between the water and the steel often acts as an insulator if flow rates drop too low.
Consider the compounding cost of thermal inefficiency. A mere two-second delay in cooling time seems negligible on a single shot. Multiply that delay across a one-million-part production run. Those two seconds translate into over 550 lost machine hours. This inflates operational costs, consumes unnecessary energy, and delays shipping schedules. Optimizing heat extraction directly recovers these lost hours and boosts your facility's overall capacity.
Polymer Type | Structure | Thermal Diffusivity Impact | Cooling Requirement |
|---|---|---|---|
Polycarbonate (PC) | Amorphous | Low latent heat release | Standard cooling layouts usually sufficient |
Nylon (PA66) | Semi-Crystalline | High latent heat during crystallization | Aggressive, targeted cooling required |
ABS | Amorphous | Moderate heat retention | Standard to moderate cooling layouts |
PEEK | Semi-Crystalline | Extreme processing temperatures | High-temperature oil or pressurized water systems |
Engineers generally choose between two primary cooling channel layouts. Each approach offers distinct advantages, specific limitations, and vastly different upfront costs. Selecting the right method depends entirely on part geometry and production volume. You must match the tooling technology to the specific demands of the manufacturing contract.
Machinists create traditional cooling channels using standard gundrilling techniques. These channels form straight lines through the mold base. When channels must intersect to create a circuit, engineers use brass or steel plugs to direct water flow and seal the ends. Baffles and bubblers help push coolant up into deeper core sections that straight lines cannot reach.
This approach carries inherent geometric limitations. Drilled holes can only travel in straight lines. They cannot wrap around curved surfaces, follow sweeping contours, or navigate complex internal features. This geometric restriction often leaves dangerous hot spots in the tool. Deep cores and thick-walled sections suffer the most. The coolant simply cannot reach these isolated areas efficiently. Operators often have to slow down the entire cycle to let the hot spots cool naturally, killing production efficiency.
Traditional channels remain the best use case for simple geometries. Flat or shallow parts cool adequately with straight-line layouts. If your upfront budget is tightly constrained, standard drilling keeps initial machining costs low. Low-volume production runs rarely justify more complex thermal strategies, making drilled channels the industry standard for basic applications.
Conformal cooling represents a massive leap in tooling technology. These channels closely follow the exact three-dimensional geometry of the part. Manufacturers create these complex pathways using Direct Metal Laser Sintering (DMLS). Advanced 3D metal printing allows channels to wrap around deep cores. They can snake through tight corners, follow sweeping curves, and maintain a perfect offset from the cavity wall.
The primary advantage is absolute thermal uniformity. Conformal channels maintain a consistent distance from the mold cavity across the entire part surface. This uniform proximity drastically reduces both cycle time and thermal gradients. Even cooling eliminates the localized hot spots that cause uneven shrinkage. Consequently, you face a much lower risk of dimensional defects, sink marks, and residual stress.
High-volume production demands conformal cooling. Complex geometries also benefit immensely from this technology. Materials highly sensitive to thermal degradation require precise temperature control. When you invest in advanced injection molding tooling, conformal layouts maximize your hourly output. Many modern shops use hybrid molds. The main mold base is traditionally machined, but complex core pins are 3D printed with conformal channels to balance cost and performance.
Feature | Traditional Drilled Channels | Conformal Cooling Channels |
|---|---|---|
Manufacturing Method | Gundrilling, standard CNC machining | DMLS, 3D metal powder bed fusion |
Geometric Flexibility | Strictly straight intersecting lines | Follows complex 3D contours seamlessly |
Cooling Uniformity | Variable, highly prone to isolated hot spots | Highly uniform across the entire part surface |
Cycle Time Impact | Standard baseline performance | Reduces overall cycle time by 15% to 40% |
Maintenance Needs | Easy mechanical brushing and descaling | Requires specialized chemical flushing |
Designing an effective cooling layout requires strict adherence to fluid dynamics and thermodynamics. You must calculate specific parameters to guarantee performance and protect the tool steel. Guessing on channel placement leads to catastrophic tool failure or massive scrap rates.
Industry-standard formulas dictate cooling channel placement. The distance from the channel center to the cavity wall is known as the depth. The distance between adjacent cooling channels is the pitch. Getting these ratios wrong either ruins the cooling effect or destroys the mold.
Engineers generally keep channel depth at 1.5 to 2 times the channel diameter. Placing channels closer risks structural failure under massive injection pressures, causing the steel to crack or cave in. Placing them further away drastically reduces heat transfer efficiency. The pitch should typically measure 2 to 3 times the channel diameter. This tight spacing prevents cold spots between channels while maintaining enough steel web thickness for structural integrity.
Precise layout mapping ensures even temperature distribution across the entire cavity. Thermal uniformity is the ultimate metric for preventing uneven shrinkage. If one side of a part cools faster than the other, the polymer shrinks at different rates. This differential shrinkage directly causes warpage, pulling the part out of tolerance.
Engineers use thermal imaging and mold flow simulation software to map heat loads before cutting steel. They adjust channel diameters and routing to balance heat extraction. Thicker part sections receive denser channel routing to pull more heat. Thinner sections require less aggressive cooling to prevent premature freezing, which causes short shots or weld lines.
Coolant must flow rapidly to extract heat efficiently. Raw speed alone is insufficient. You must achieve turbulent flow within the channels. Turbulent flow vigorously mixes the coolant, disrupting the stagnant, insulating boundary layer of water that clings to the channel wall.
Engineers calculate the Reynolds number to verify flow characteristics. A Reynolds number below 2,000 indicates laminar flow. Laminar flow creates a stagnant boundary layer that drastically reduces heat transfer, acting like a thermal blanket. You must design the pumping system and channel diameters to achieve a Reynolds number greater than 4,000. This guarantees fully turbulent flow, maximizing convective heat transfer and pulling heat out of the steel rapidly.
Flow State | Reynolds Number Range | Heat Transfer Efficiency | Production Impact |
|---|---|---|---|
Laminar Flow | Below 2,000 | Very Poor | Extended cycle times, high risk of hot spots |
Transitional Flow | 2,000 to 4,000 | Inconsistent | Unpredictable shrinkage, varying part quality |
Turbulent Flow | Above 4,000 | Excellent | Optimized cycle times, uniform part cooling |
Secondary operations introduce unique thermal challenges that standard layouts cannot handle. Metal inserts act as massive heat sinks or thermal barriers. They alter the natural cooling progression of the surrounding polymer, creating unpredictable shrinkage patterns.
When manufacturing insert molding parts, you must adjust channel layouts accordingly. The metal insert absorbs heat from the melt rapidly. It also retains that heat, creating a localized hot spot long after the rest of the part has cooled. Cooling channels must route much closer to the insert location. This targeted cooling prevents the polymer from degrading around the hot metal component. It also ensures the plastic shrinks tightly and uniformly around the insert, guaranteeing a strong mechanical bond.
Engineering decisions always intersect with financial realities on the production floor. You must evaluate the economic trade-offs of advanced cooling layouts to ensure long-term profitability. Upfront tooling costs must be weighed against daily operational savings.
Conformal cooling channels require expensive additive manufacturing processes. Metal 3D printing significantly increases the initial price of the tool compared to standard gundrilling. You must calculate the break-even point based strictly on production volume and machine hourly rates.
Faster cycle times increase your hourly yield. You produce more parts per shift, reducing the total machine time required to fulfill the contract. For high-volume projects, the cycle time savings quickly surpass the initial tooling premium. You must analyze your expected production volumes to justify the upfront investment. If a tool runs constantly for years, the initial printing cost becomes a negligible fraction of the overall financial return.
Uniform cooling layouts directly reduce residual stress in the molded part. Less residual stress means less shrinkage and virtually no warpage. This translates directly to higher dimensional stability and far fewer rejected parts at the quality control station.
Scrap reduction acts as a direct multiplier to your cycle time savings. Every rejected part wastes raw resin, machine time, and operator labor. By eliminating thermal defects, advanced cooling layouts maximize your yield of sellable parts. This quality improvement often justifies the tooling upgrade on its own, especially when molding expensive engineering-grade resins like PEEK or Ultem.
Tool steel selection heavily influences cooling efficiency. Standard P20 or H13 tool steels offer excellent durability and longevity for millions of cycles. Their thermal conductivity is relatively low, meaning they hold onto heat.
Engineers often use high-thermal-conductivity materials in critical areas to bypass layout limitations. Beryllium copper (BeCu) alloys extract heat up to five times faster than standard steel. Inserting copper alloy pins into deep cores accelerates localized cooling drastically. You must balance this thermal advantage against physical durability. Copper alloys wear faster than hardened steel, especially when molding glass-filled or highly abrasive polymers. Shops often plate BeCu inserts with nickel or hard chrome to extend their lifespan while maintaining thermal performance.
Tooling Material | Thermal Conductivity (W/m·K) | Durability / Wear Resistance | Best Application |
|---|---|---|---|
P20 Tool Steel | ~30 | Good | Standard mold bases, low-abrasion resins |
H13 Tool Steel | ~24 | Excellent | High-volume production, abrasive resins |
Beryllium Copper (BeCu) | ~130 to 260 | Poor (unless plated) | Deep cores, isolated hot spots requiring rapid cooling |
Aluminum (7075) | ~130 | Very Poor | Prototype molds, very low-volume runs |
Advanced cooling layouts introduce specific operational risks that can ruin a mold. You must implement robust mitigation strategies to protect your tooling investment and maintain production uptime. Ignoring these risks leads to cracked steel and blocked water lines.
There is a significant risk of over-engineering cooling layouts. Placing channels too close to the cavity improves cooling but severely compromises steel strength. The mold must withstand massive clamping forces and high injection pressures without deflecting.
You must mandate finite element analysis (FEA) during the design phase. FEA simulates the mechanical stresses on the tool steel under peak injection pressure. You must also run mold flow simulations to validate thermal efficiency. These digital validations ensure structural limits are respected before you cut any steel. Guessing on channel depth leads directly to cracked molds and catastrophic downtime.
Complex conformal channels are highly susceptible to clogging. Scale buildup, rust, and bio-fouling degrade cooling efficiency over time. A partially blocked conformal channel is incredibly difficult to clear because you cannot run a brush through a curved printed pathway.
You must specify closed-loop, filtered water systems. The coolant requires strict, continuous chemical treatment. Biocides prevent organic algae growth, while corrosion inhibitors protect the tool steel from rusting from the inside out. Regular water quality testing is mandatory to maintain thermal performance. If scale builds up even a millimeter thick, it acts as an insulator and ruins the conformal cooling advantage.
Install inline filtration systems to catch particulate matter before it enters the mold.
Monitor pH levels daily to prevent acidic corrosion of the channel walls.
Dose the system with biocides weekly to eliminate algae and bacterial growth.
Use softened or deionized water to prevent calcium and magnesium scale buildup.
Injection pressures often exceed 10,000 PSI inside the cavity. If cooling channels sit too close to the surface, the thin steel web can flex outward. Repeated flexing leads to severe mold fatigue and eventual cracking.
Engineers must calculate the yield strength of the specific tool steel being used. They must maintain a safe minimum distance between the channel and the cavity based on the material's fatigue limit. High-pressure applications require thicker steel sections, which slightly reduces cooling efficiency but guarantees the mold will survive the production run.
Traditional straight-drilled channels are easy to maintain on the bench. Technicians can mechanically clean them using long brass brushes and standard descaling rods. This physical cleaning removes stubborn mineral deposits quickly and cheaply.
Conformal layouts make mechanical cleaning impossible. The curving pathways prevent any physical brush access. You must rely entirely on chemical flushing to clean conformal channels. This requires specialized pumping equipment and aggressive cleaning agents like mild phosphoric acids to dissolve scale. You must factor these specialized maintenance requirements into your operational planning and preventative maintenance schedules.
Traditional cooling layouts remain sufficient for simple geometries and low-volume production runs. Optimizing your channel layout is the most effective lever for maximizing profitability in competitive manufacturing. Conformal cooling provides unmatched thermal control for high-volume injection molding. It reduces cycle times, eliminates hot spots, and drastically improves part quality by ensuring uniform shrinkage.
You must evaluate tooling partners based on their engineering capabilities, not just their machining rates. Look for partners with in-house thermal simulation and mold flow analysis expertise. They should also possess proven experience with advanced manufacturing techniques like DMLS and hybrid tooling design.
Audit your current longest-running molding cycles to identify thermal bottlenecks and hot spots.
Request a comprehensive thermal analysis and FEA of your existing legacy molds.
Consult with a tooling engineer to calculate lifecycle returns for layout optimization on your next project.
Implement strict water quality controls and chemical flushing schedules to protect your high-value tooling assets.
A: The cooling phase typically accounts for 60% to 80% of the total injection molding cycle. Because it consumes the vast majority of machine time, optimizing heat extraction is the primary target for reducing overall cycle times and increasing production throughput.
A: Several variables dictate cooling requirements. Part wall thickness is the most critical factor, as thicker sections retain heat longer. The polymer's specific melt temperature, the target mold temperature, and the material's unique thermal diffusivity all significantly impact the required cooling duration.
A: Traditional channels are straight-drilled into the mold block, which limits their reach into complex areas. Conformal channels are 3D-printed to curve and follow the exact geometry of the part. This ensures uniform heat extraction and vastly superior mold temperature distribution.
A: Yes. Warpage is primarily caused by differential shrinkage when a part cools unevenly. A highly optimized, uniform cooling layout prevents localized hot spots. This eliminates the uneven shrinkage and residual thermal stresses that directly cause dimensional instability and warpage.
A: The standard engineering rule of thumb dictates that channel depth should generally be 1.5 to 2 times the diameter of the cooling channel. This ratio provides an optimal balance between rapid heat transfer and maintaining the structural integrity of the tool steel under pressure.
A: Metal inserts drastically alter the thermal dynamics inside the mold. They often act as heat sinks, retaining thermal energy and creating localized hot spots. Specialized channel layouts are required to extract heat rapidly from these areas, ensuring the polymer cures evenly around the insert.
