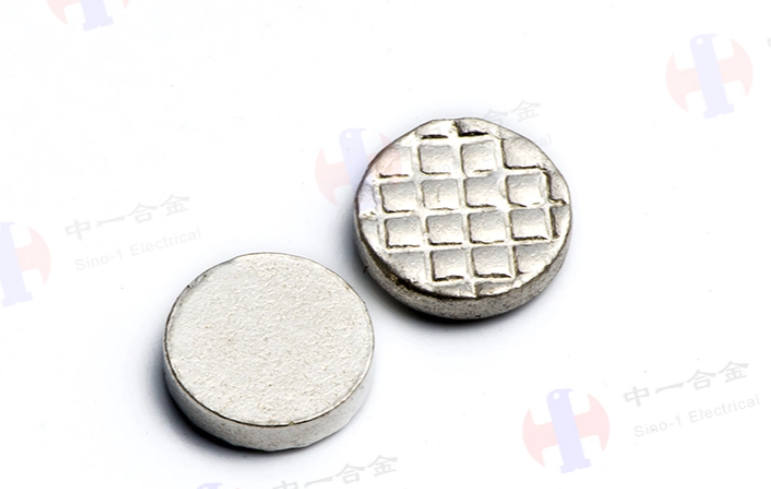

AgWC contact materials are high-performance electrical contact alloys manufactured using an advanced tungsten carbide skeleton melt infiltration process. This specialized production technique creates a material with exceptional hardness, superior electrical wear resistance, and outstanding arc erosion properties. Our silver tungsten carbide contacts offer a unique combination of mechanical strength and electrical conductivity, making them ideal for demanding high-current switching applications.
| Quantity: | |
|---|---|
The microstructure of our AgWC electrical contacts consists of a continuous tungsten carbide skeleton infiltrated with pure silver. This structure provides excellent thermal stability and mechanical integrity under extreme operating conditions. Under high-temperature electrical arcing, the free carbon contained within the tungsten carbide matrix effectively retards tungsten oxidation, suppressing overall material degradation and maintaining stable electrical performance throughout extended service life.
Parameter | Standard Value | Customization Range |
Material Composition | Ag (30%–50%) + WC (50%–70%) | 20%–60% Ag content |
Contact Resistance | ≤3.0 mΩ | Application-specific tuning |
Hardness (HV) | 220–300 | 200–350 |
Density | 13.0–14.5 g/cm³ | 12.5–15.0 g/cm³ |
Operating Temperature | Up to 400°C | Up to 450°C (premium grades) |
Thickness Range | 0.8–6.0 mm | 0.5–12.0 mm |
Diameter Range | 3.0–60.0 mm | 1.5–120.0 mm |

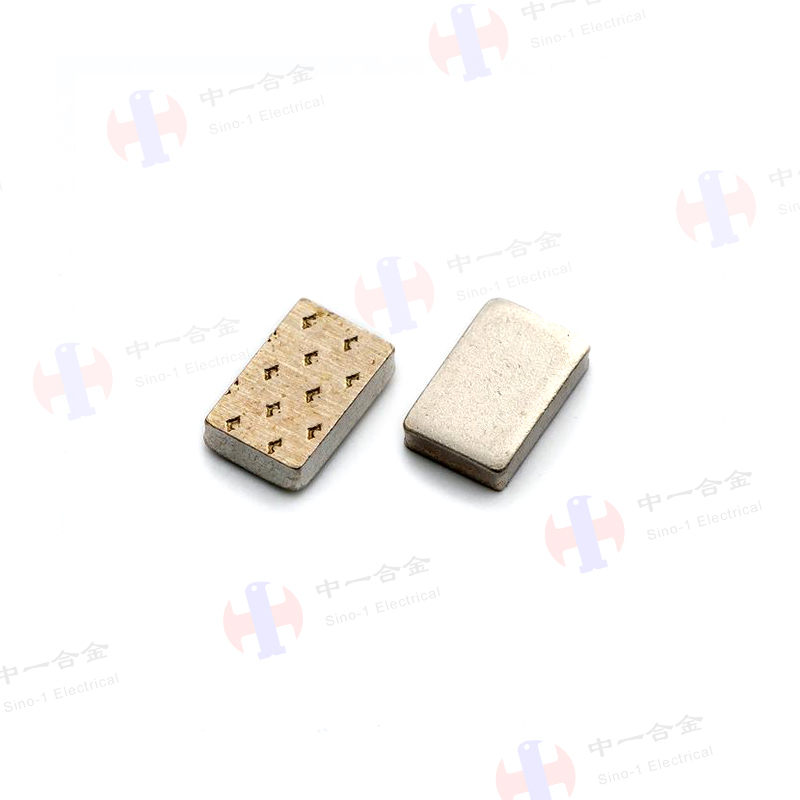

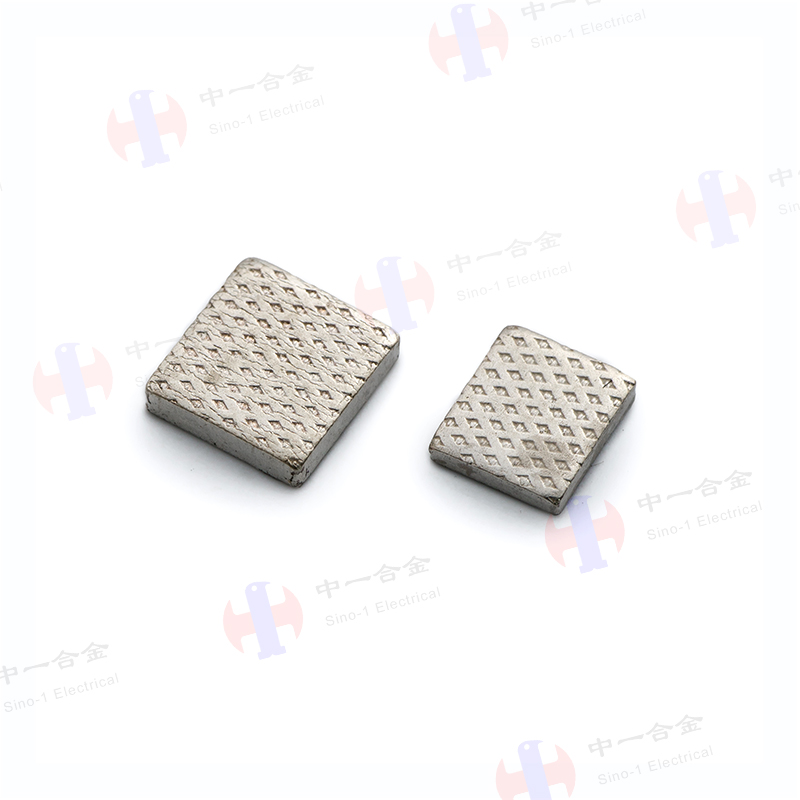

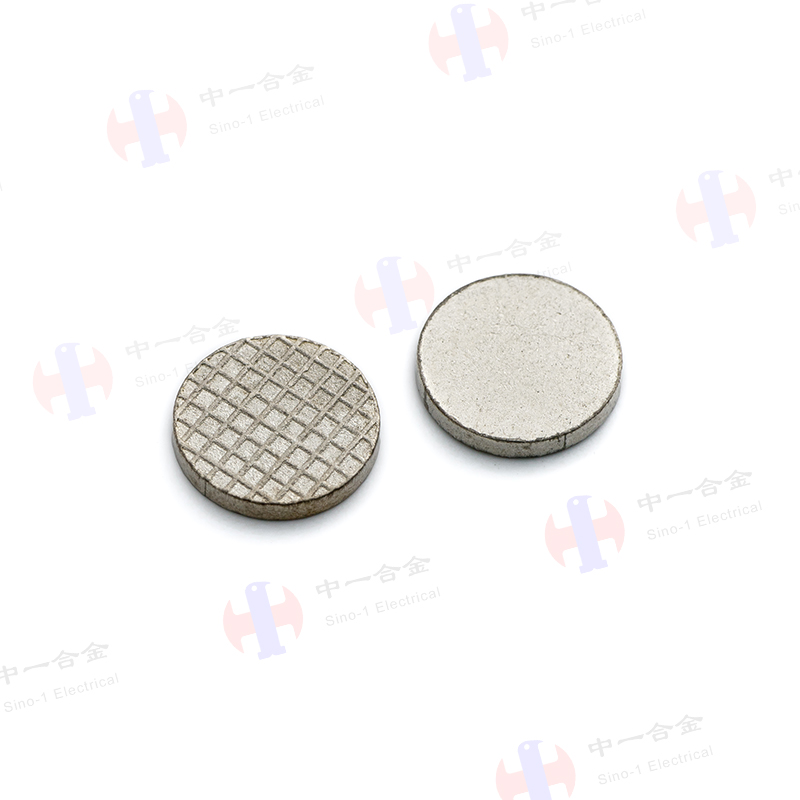

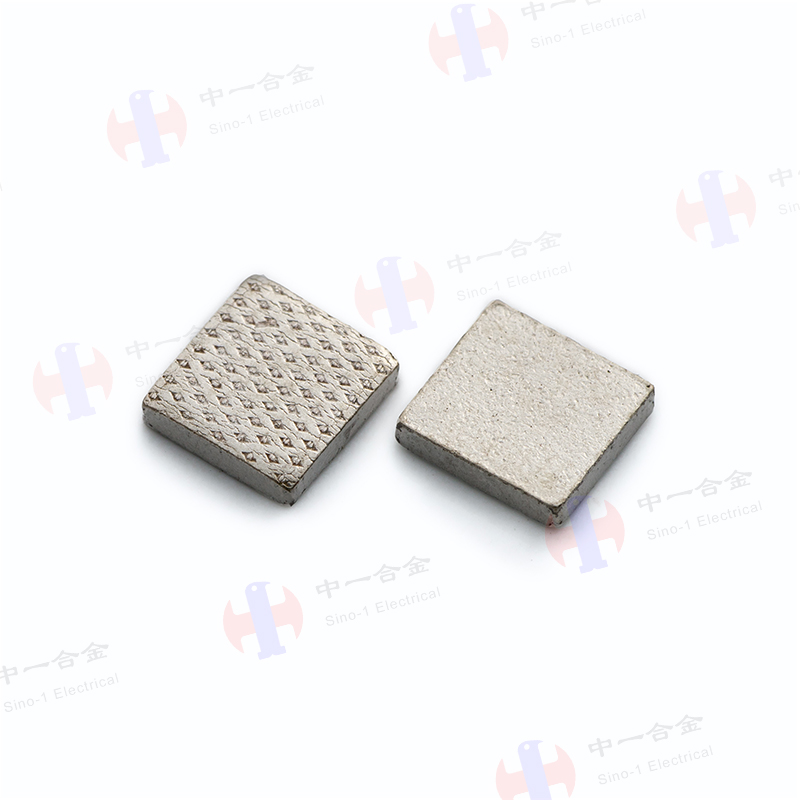

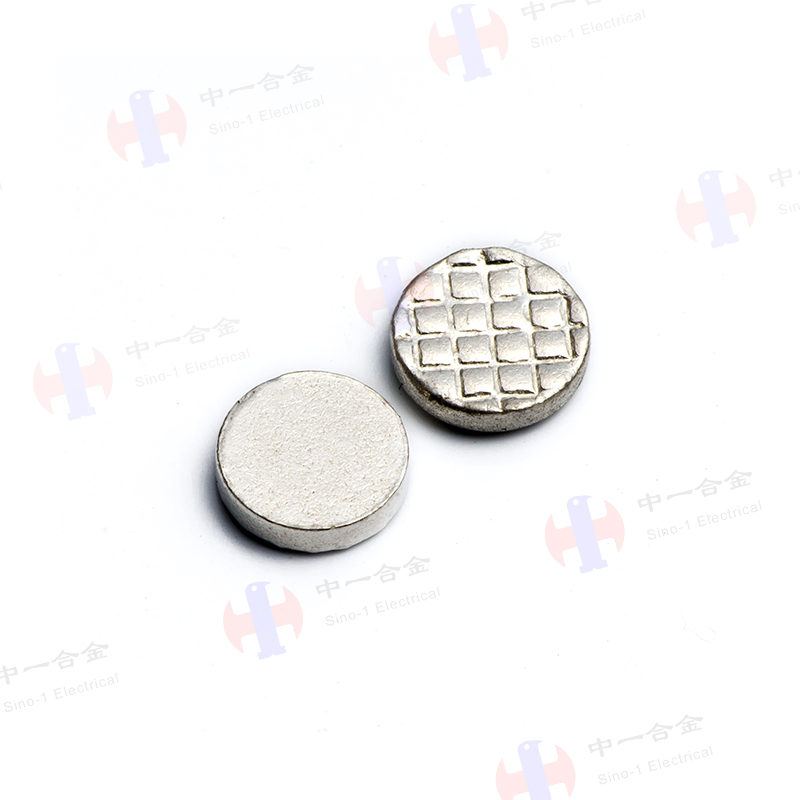

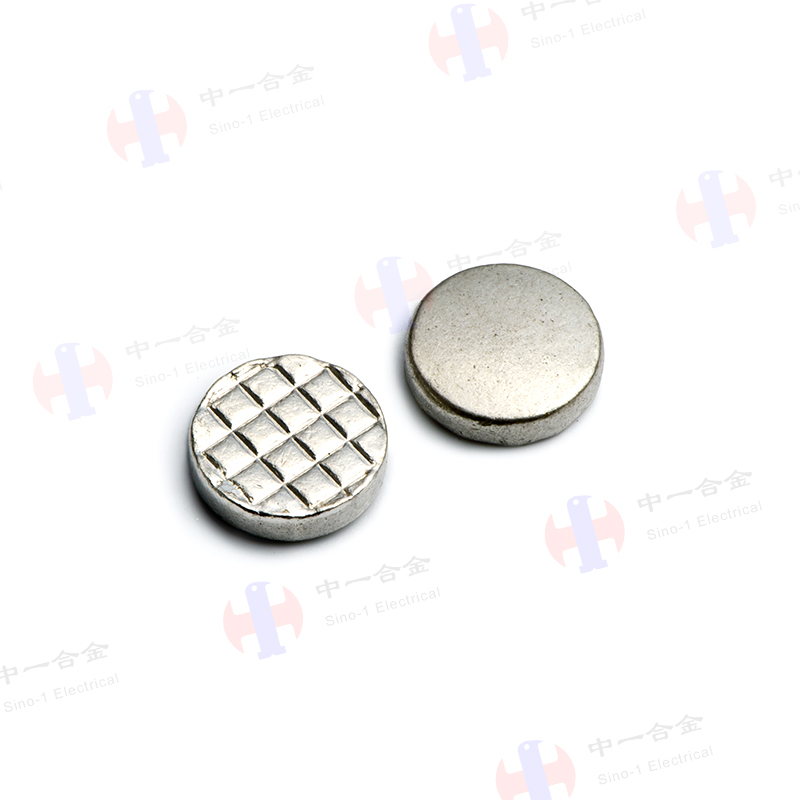

Shape Options | Round, Square, Rectangular, Custom | Complex geometries available |
Exceptional Hardness: Superior mechanical strength resists deformation under high mechanical and electrical loads
Outstanding Arc Erosion Resistance: Minimizes material loss during arcing, extending contact lifespan
Excellent Anti-Welding Capability: Prevents contact fusion during high-current fault conditions
Superior Oxidation Resistance: Free carbon in WC matrix inhibits tungsten oxidation at high temperatures
Stable Electrical Performance: Maintains consistent contact resistance throughout service life
High Thermal Conductivity: Efficiently dissipates heat generated during switching operations
Versatile Composition: Adjustable silver content to balance performance and cost requirements
Our premium AgWC tungsten carbide contacts are trusted by leading manufacturers across diverse industrial sectors for their reliability in harsh operating environments. Primary applications include:
Medium-voltage circuit breakers and load break switches
High-current contactors and motor control centers
Generator circuit breakers and power plant switchgear
Industrial fuse components and disconnect switches
Railway signaling and traction systems
Electric vehicle charging infrastructure
Marine electrical systems and shipboard switchgear
Aerospace and defense electrical components
Welding equipment contacts
Elevator and escalator control systems
Mining and construction machinery electrical systems
Heavy-duty industrial relays and timers
Uninterruptible power supply (UPS) systems
Data center power distribution units
Smart grid components and smart meters
Emergency power systems and backup generators
AgWC contacts offer higher hardness and better wear resistance than AgW materials. While their contact resistance is slightly higher, they provide superior anti-welding properties and enhanced oxidation resistance at elevated temperatures.
We offer AgWC contacts with silver content ranging from 20% to 60%. Higher silver content improves conductivity and machinability, while higher tungsten carbide content enhances hardness and wear resistance.
Yes, our AgWC electrical contacts perform excellently in both alternating current (AC) and direct current (DC) switching applications.
Service life depends on operating conditions including current, voltage, switching frequency, and environmental factors. Our engineering team can provide life expectancy estimates based on your specific application parameters.
As a leading manufacturer of advanced electrical contact materials, we specialize in developing custom AgWC contact solutions that meet the most demanding performance requirements. Our state-of-the-art manufacturing facilities and rigorous quality control processes ensure consistent product quality and reliable performance.
Whether you need standard off-the-shelf contacts or fully customized solutions with unique material compositions and geometries, we have the expertise and capabilities to deliver. Contact our technical sales team today to discuss your application needs, request product samples, or obtain a competitive quotation. We serve industrial equipment manufacturers and electrical system integrators globally with fast delivery and exceptional technical support.
