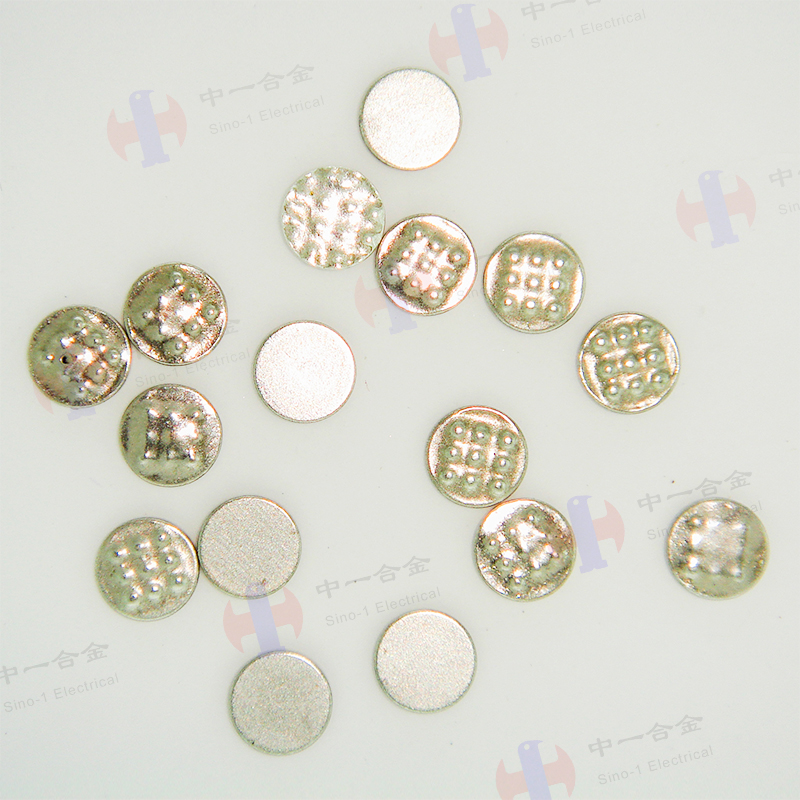

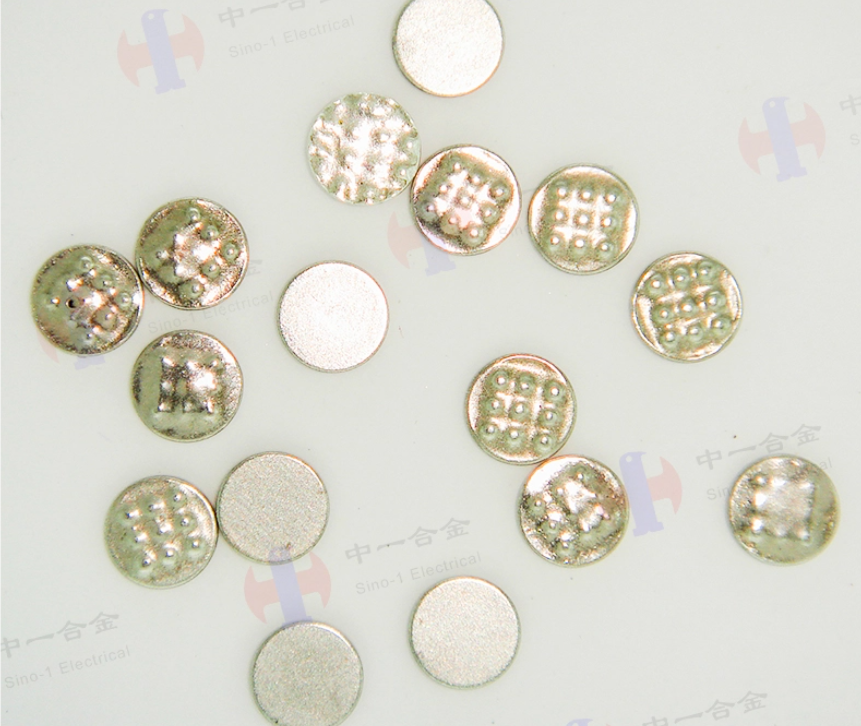

AgWCC contact materials represent a breakthrough in electrical contact technology, engineered to deliver optimal performance while significantly reducing material costs. Our advanced AgWCC/Cu composite contacts feature an innovative layered architecture that combines the best properties of two distinct materials. The working surface retains the premium AgWCC alloy, preserving its inherent low contact resistance, exceptional anti-welding characteristics, and reliable self-lubricating properties. The backing layer utilizes high-conductivity copper, providing robust structural support and excellent electrical transmission capabilities.
| Quantity: | |
|---|---|
This intelligent design allows our silver tungsten carbide copper contacts to fully satisfy the demanding requirements of stationary contact applications. By strategically reducing precious metal consumption without compromising performance, we achieve a substantial 15%–30% cost advantage over traditional solid AgWCC electrical contacts. Our manufacturing process ensures consistent quality and precise dimensional control, making these contacts ideal for high-volume production environments and critical electrical systems.
Parameter | Standard Value | Customization Range |
Material Composition | AgWCC (Working Layer) + Cu (Backing Layer) | Adjustable AgWCC thickness |
Contact Resistance | ≤2.5 mΩ | Application-specific optimization |
Hardness (HV) | 180–240 | 160–260 |
Density | 12.5–13.5 g/cm³ | 12.0–14.0 g/cm³ |
Operating Temperature | Up to 350°C | Up to 400°C (special grades) |
Thickness Range | 0.5–5.0 mm | 0.3–10.0 mm |
Diameter Range | 2.0–50.0 mm | 1.0–100.0 mm |

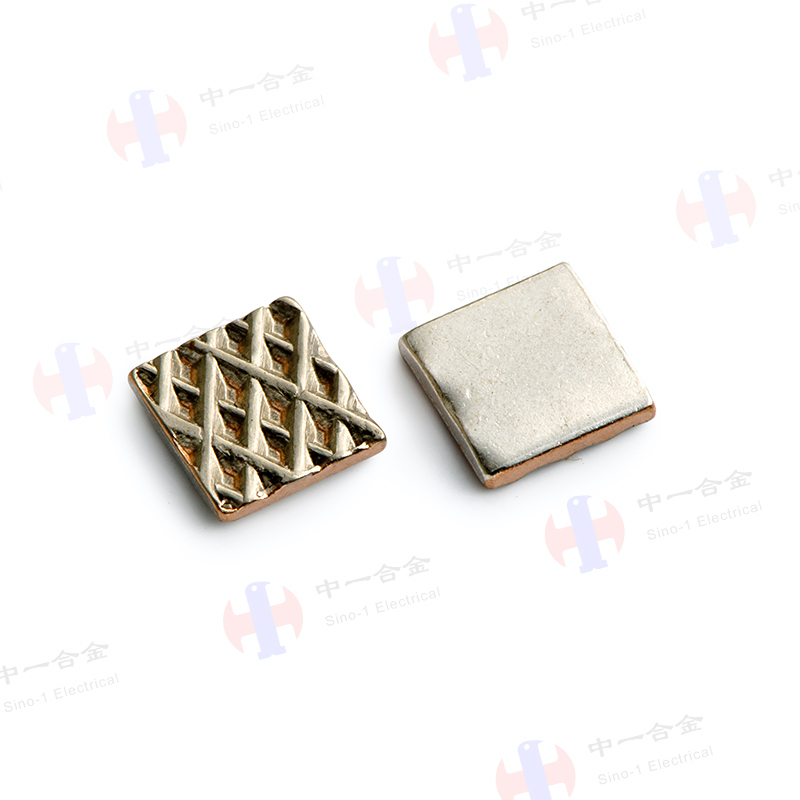

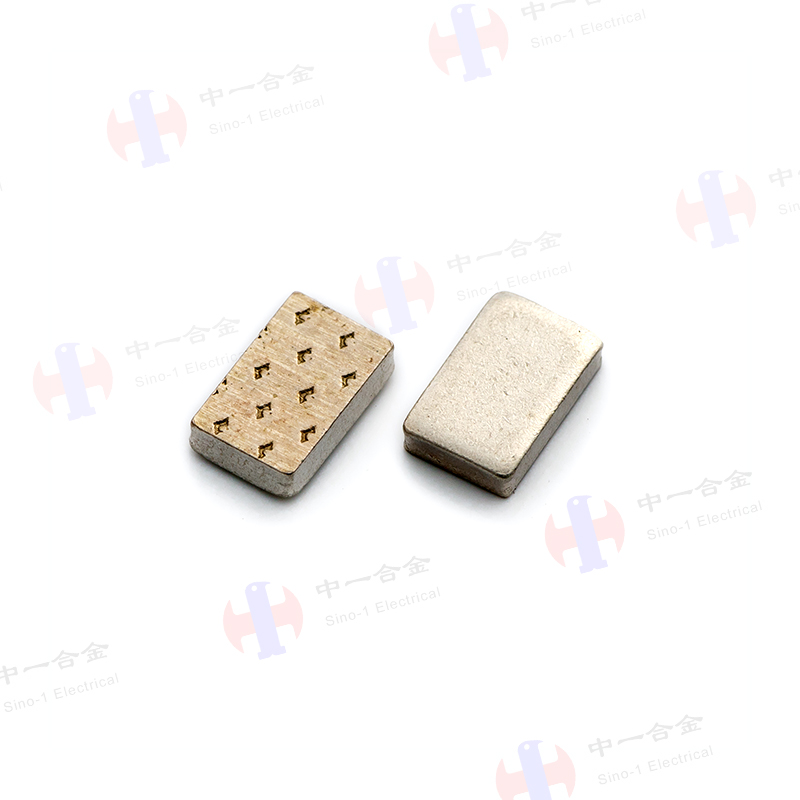

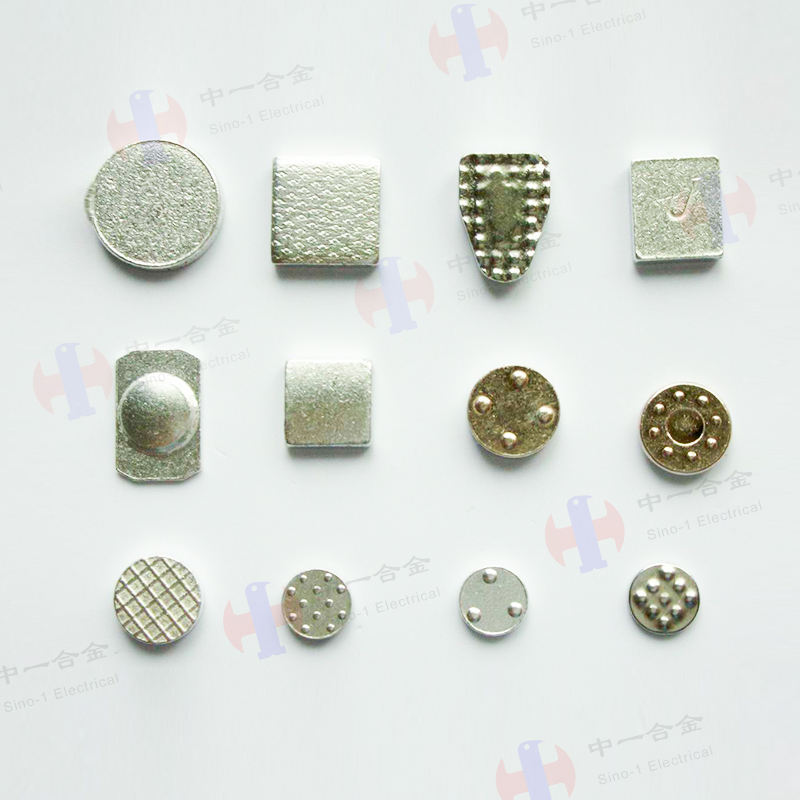

Shape Options | Round, Rectangular, Custom | Any geometric configuration |
Superior Cost-Effectiveness: 15%–30% lower material cost compared to solid AgWCC contacts through optimized precious metal usage
Excellent Electrical Performance: Maintains low contact resistance and stable conductivity throughout the product lifecycle
Outstanding Anti-Welding Properties: Resists material fusion during high-current switching operations
Natural Self-Lubrication: Reduces mechanical wear and extends contact service life
High Mechanical Strength: Copper backing provides enhanced structural integrity and durability
Precision Manufacturing: Tight dimensional tolerances ensure perfect fit and reliable operation
Environmentally Friendly: Minimizes precious metal consumption without sacrificing performance
Our layered AgWCC composite contacts are extensively used across multiple industrial sectors where reliable electrical switching is critical. They are particularly well-suited for:
Low-voltage circuit breakers and molded case circuit breakers (MCCBs)
Distribution switches and disconnecting switches
Busbar connectors and terminal blocks
Power contactors and motor starters
Relay contacts and control relays
Magnetic contactors and overload relays
Programmable logic controller (PLC) output modules
Industrial automation components
Battery disconnect switches
High-current relays
Starter motor contacts
Power distribution modules
Solar inverter contacts
Wind turbine control systems
Battery management system (BMS) components
Energy storage system switches
Layered contacts use AgWCC only on the working surface where electrical contact occurs, with a copper backing for structural support. This design maintains equivalent performance to solid contacts while reducing material costs by 15%–30%.
Our standard AgWCC/Cu composite contacts are optimized for stationary contact applications. For moving contact requirements, we offer specialized grades with enhanced wear resistance.
Current ratings depend on contact size, shape, and application conditions. Our engineering team can provide custom solutions for current requirements up to 1000A.
Yes, we provide various plating options including silver, gold, and tin plating to meet specific application requirements.
Our team of experienced electrical materials engineers is ready to develop tailored AgWCC contact solutions for your specific application needs. Whether you require standard dimensions or custom-designed contacts with unique specifications, we can deliver high-quality products that optimize performance and reduce your total cost of ownership.
Contact us today to discuss your requirements, request a detailed quotation, or schedule a technical consultation. We offer fast turnaround times, competitive pricing, and comprehensive technical support to industrial manufacturers and electrical component suppliers worldwide.
